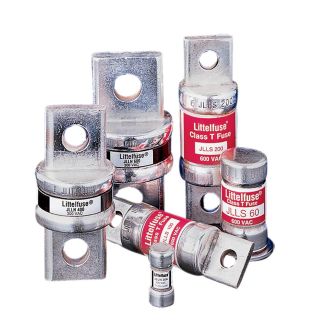

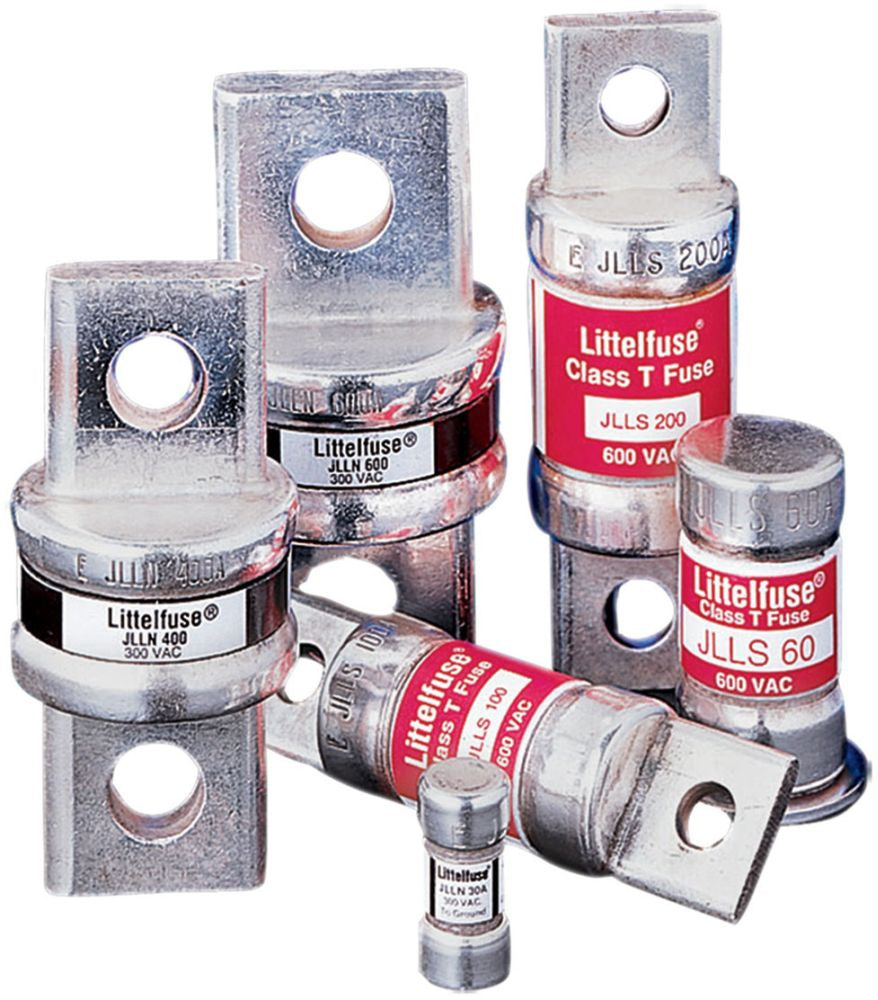

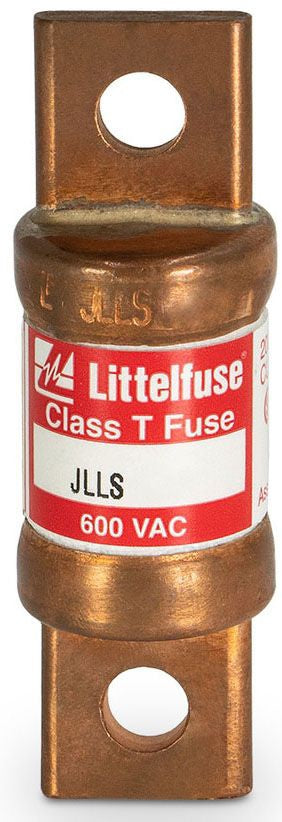

Littelfuse JLLS150 Current Limiting Fast Acting Fuse 150 A 600 VAC/300 VDC 20/200 kA Interrupt

Product Description

The Littelfuse JLLS150 is a current limiting fast-acting fuse designed for various applications. With a voltage rating of 600 VAC and 300 VDC, this fuse has an amperage rating of 150 A and a significant interrupting rating of 20 kA AC and 200 kA DC. The Class T design provides excellent protection for non-inductive circuits and equipment.

• Extremely compact design
• Fast-acting overload and short circuit protection
• Ideal for variable speed drive applications

Product Highlights

This fuse is suitable for protecting electric services and meters. It is less than one-third the size of comparable Class R fuses, making it a space-saving option.

Product Information

Standard Information

• Manufacturer: Littelfuse
• MPN: JLLS150

Technical Specifications

• Amperage Rating: 150 A
• Voltage Rating: 600 VAC / 300 VDC
• Interrupt Rating: 20/200 kA
• Body Size: 1.078 inches Diameter x 3.25 inches Length
• Material: Melamine
• Mounting Type: Holder
• Terminal Type: Knife Blade
• Country of Origin: Mexico
