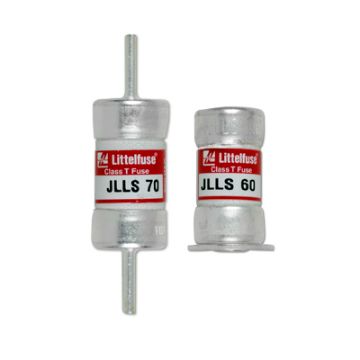

Littelfuse JLLS110 LIT Current Limiting Fast Acting Fuse 110 A 600 VAC/300 VDC

Product Description

Littelfuse JLLS110 is a current limiting fast acting fuse specifically designed for use in various applications, particularly for variable speed drives. This fuse offers overload and short circuit protection for non-inductive circuits. Its compact design makes it ideal for installations where space is limited.

• Rated for 110 A with 600 VAC/300 VDC voltage
• Interrupt ratings of 20/200 kA
• Non-indicating with knife blade terminals

Product Highlights

Efficient protection for electrical systems, reducing equipment damage due to faults.

Product Information

Standard Information

• Manufacturer: Littelfuse
• Sub Brand: POWR-GARD JLLS Series

Technical Specifications

• Amperage Rating: 110 A
• Voltage Rating: 600 VAC/300 VDC
• Body Size: 1.078 in Dia x 3.25 in L
• Body Type: Cartridge
• Mounting Type: Holder
• Terminal Type: Knife Blade
• Class: T
• Material: Melamine
• Country of Origin: Mexico
• Standards: UL 248-15, UL E81895, CSA Certified
