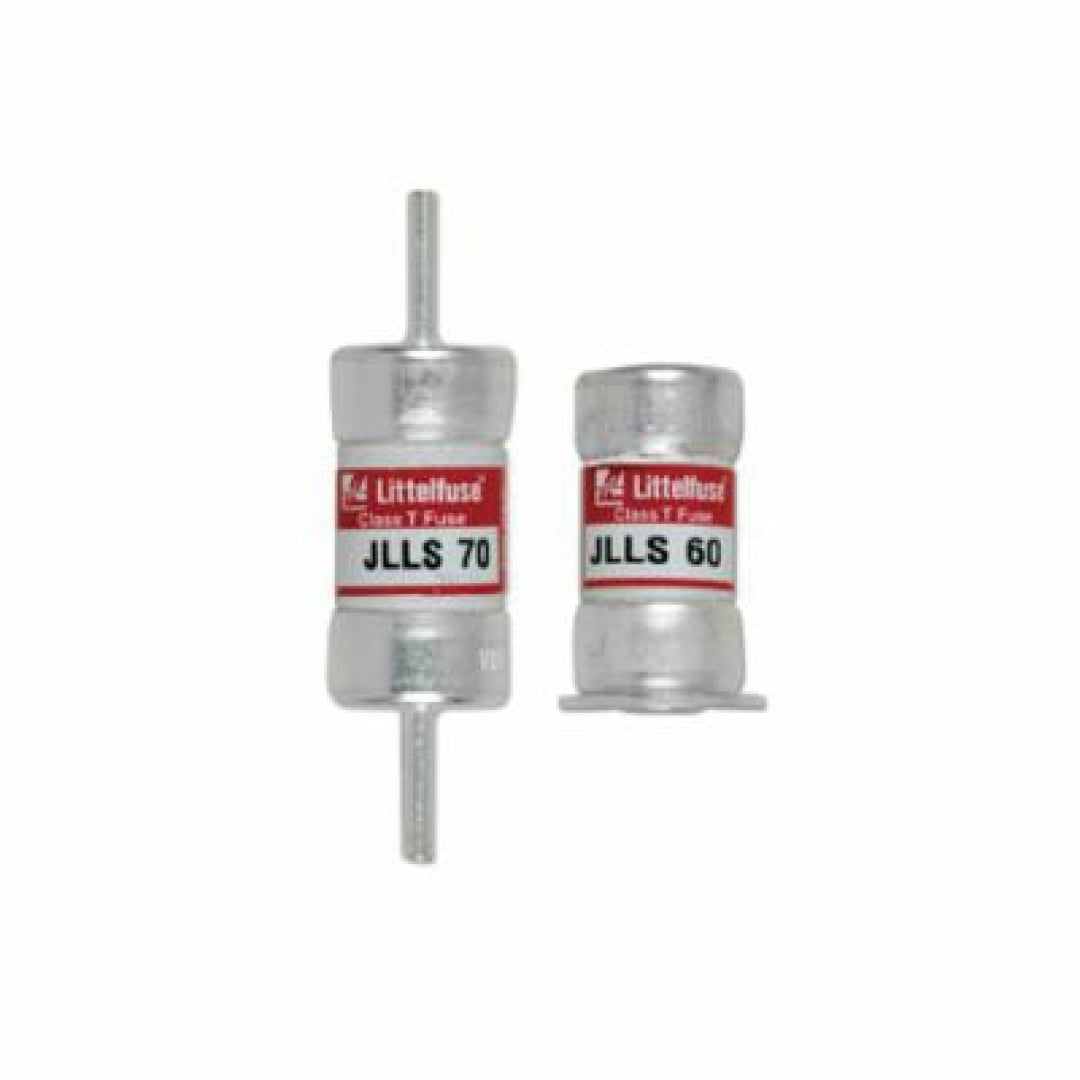

Littelfuse JLLS080P UL Class T Fast-Acting Fuse - Silver-Plated

Product Description

Littelfuse JLLS080P is a UL Class T fast-acting fuse designed for various electrical applications. This fuse has a rating of eighty amperes and is suitable for both three hundred volts alternating current and three hundred volts direct current. Its construction includes a cartridge blade body and knife blade terminal, which makes it easy to install in different mounting setups.

• Effective protection for individual electric services and meters
• Compact design for use in main switches and panel boards
• UL 248-15 certified and RoHS compliant

Product Highlights

This fuse offers superior overload and short circuit protection for demanding electrical projects. Its current limiting design minimizes equipment damage and ensures reliability in operation.

Product Information

Standard Information

• Brand: Littelfuse
• MPN: JLLS080P

Technical Specifications

• Amperage Rating: 80 A
• Voltage Rating: 300 VAC/300 VDC
• Class: T
• Body Size: 0.828 in Dia x 2.953 in L
• Material: Melamine
• Interrupt Rating: 20/200 kA
• Terminal Type: Knife Blade
• Mounting Type: Bolted-On
