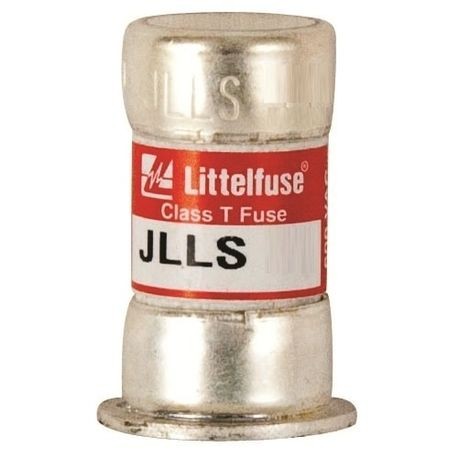

Littelfuse JLLS060 60A 600VAC/300VDC Class T Fast Acting Fuse

Product Description

The Littelfuse JLLS060 fuse offers efficient protection for electrical systems operating up to 600 volts AC and 300 volts DC. This 60 ampere, fast-acting fuse quickly interrupts electrical current upon detecting faults, safeguarding sensitive equipment from damage. With a compact Class T form, it's ideal for space-constrained applications.

• Efficient operation with a fast response time.
• Rated for high inrush currents, suitable for transformers and motors.
• Complies with stringent UL and CSA standards.

Product Highlights

Designed for reliability in high-demand systems, the JLLS060 ensures continuous protection. Its robust melamine body and precise engineering deliver performance that professionals trust.

Technical Specifications

• Brand: Littelfuse
• MPN: JLLS060
• AC Voltage Rating: 600VAC
• DC Voltage Rating: 300VDC
• Interrupt Rating: 200kA at 600VAC, 20kA at 300VDC
• Fuse Size: 1 9/16 inches Long x 13/16 inches Diameter
• Body Material: Melamine
• Standards: CE, CSA Certified, UL 248-15 Class T
