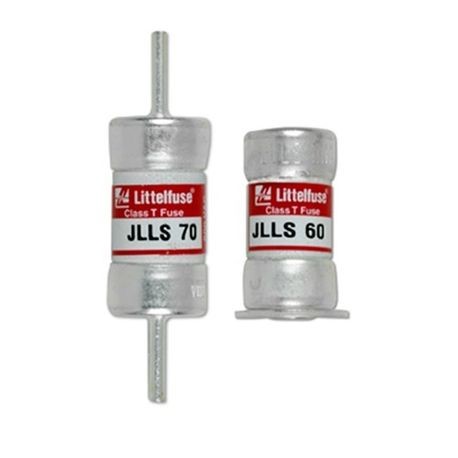

LITTELFUSE JLLS050 UL CLASS T FAST-ACTING FUSE

Product Description

The Littelfuse JLLS050 is a Class T fast-acting fuse designed for superior circuit protection. It ensures rapid disconnection to protect equipment in the event of an overload or short circuit, particularly in non-inductive systems.

• Compact size for space-saving installation.
• Quick-reacting to sudden inrush currents and overloads.
• Applicable for use up to 600 VAC or 300 VDC.

Product Highlights

This fuse is suitable for applications where circuit integrity is crucial and space is limited. Its high interrupt rating ensures it can handle up to 200 kA at 600 VAC and 20 kA at 300 VDC, making it an essential safety component in electrical systems.

Product Information

Standard Information

• Body Material: Melamine
• Compatibility: Suitable with LFT fuse block series.

Technical Specifications

• Fuse Class: T
• Interrupt Rating: 200 kA at 600 VAC, 20 kA at 300 VDC
• Voltage Rating: 600 VAC / 300 VDC
• Ampere Rating: 50 A
• Fuse Size: 1-9/16 in length x 13/16 in diameter
• Standards: CE, UL 248-15 Class T, CSA Certified, RoHS
