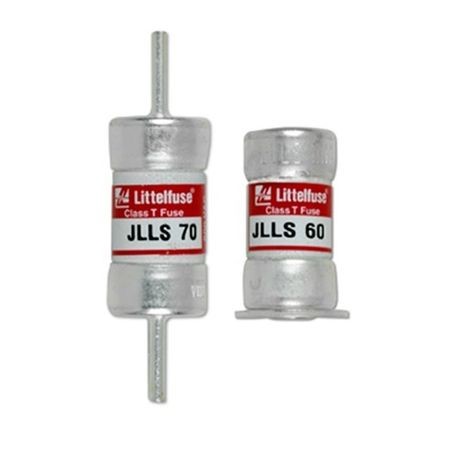

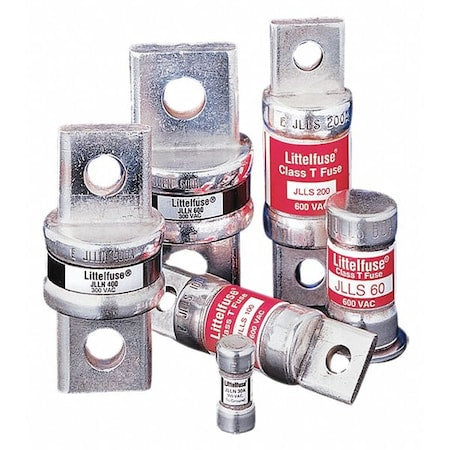

LITTELFUSE JLLS040 600V 40A T Class Cartridge Fuse

Product Description

The LITTELFUSE JLLS040 is a Class T fuse designed for space efficiency and precise operation, capable of handling 40 amps with a maximum voltage of 600V AC and 300V DC. It offers robust short circuit and overload protection in both industrial and commercial applications.

• Space-saving design offers maximum efficiency and protection in compact environments.
• Fast acting response ensures safety under critical system conditions.
• Optimal for non-inductive circuits with potential inductive adjustments.

Product Highlights

Featuring a cartridge style, the LITTELFUSE JLLS040 delivers reliable performance and is rated at 200,000 amps interruption in AC setups and 20,000 amps in DC conditions. Ideal for use in various electrical configurations, it's a top choice for safeguarding equipment.

Product Information

Standard Information

• Brand: Littelfuse
• Interrupt Rating: 200kA at 600V AC, 20kA at 300V DC

Technical Specifications

• MPN: JLLS040
• Max AC Voltage Rating: 600V AC
• Max DC Voltage Rating: 300V DC
• Current Rating: 40A
• Class: T
• Fuse Type: Fast Acting
• Body Style: Cartridge
• Standards: CE, CSA Certified, RoHS, UL 248-15 Class T, UL Listed
