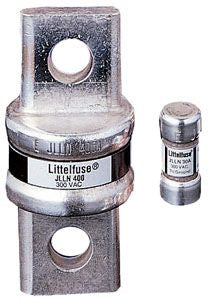

Littelfuse JLLN175 Fast Acting Fuse 175A 250V Class T

Product Description

The Littelfuse JLLN175 is a fast-acting fuse designed for efficient circuit protection with a current rating of one hundred seventy-five amperes and a maximum voltage rating of two hundred fifty volts. This Class T fuse offers reliable performance in protecting equipment from overloads and short circuits.

• Space-saving design requiring less panel area compared to Class R fuse blocks
• Fast acting to provide protection for variable speed drives and other sensitive equipment
• Current limiting characteristics reduce damage from short circuit currents

Product Highlights

This fuse combines compact size with high interrupting ratings, making it suitable for various applications, including the protection of electric services and meter stacks.

Product Information

Standard Information

• Manufacturer: Littelfuse
• Type: Class T

Technical Specifications

• Amperage Rating: 175 A
• Voltage Rating: 300 VAC / 125 VDC
• Interrupt Rating: 200000 Ampere (Symmetrical), 20000 Ampere (DC)
• Diameter: 1.06 in
• Length: 2.44 in
• Approval: UL 248-15, CSA, CE
• Terminal Type: Blade
