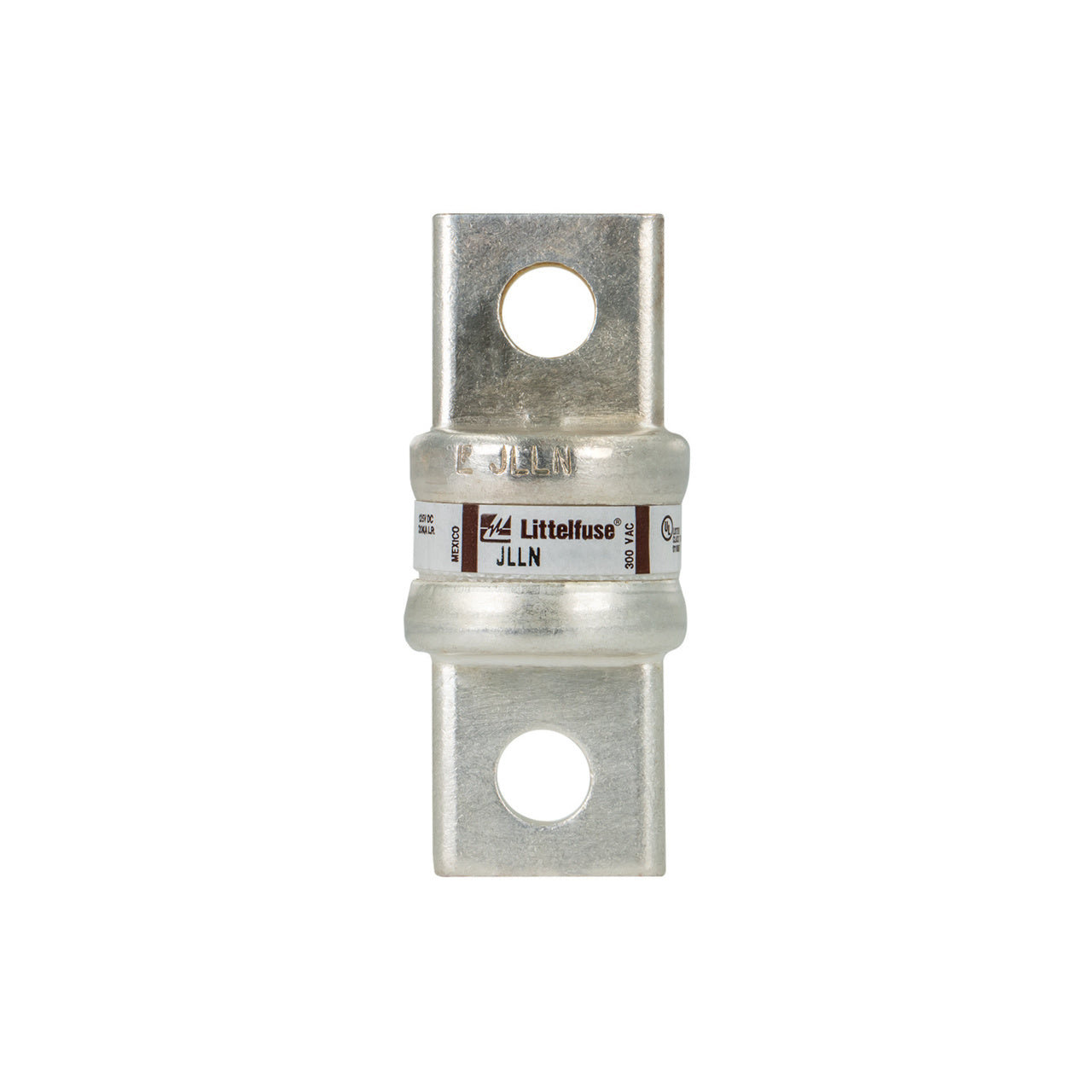

LITTELFUSE JLLN150P UL CLASS T FAST-ACTING FUSE - SILVER-PLATED

Product Description

The LITTELFUSE JLLN150P is a UL Class T fast-acting fuse designed to provide reliable protection in electrical systems. This fuse is rated for 150 amperes and is compatible with 300 VAC and 125 VDC. Built with a cartridge blade body and bolted-on mounting, this component is ideal for applications requiring improved safety and efficiency.

• Provides protection for individual electric service and meters
• Compact design for use in main switches and meter stacks
• Fast-acting overload protection for sensitive electronic equipment

Product Highlights

This product offers an extremely current-limiting design that effectively stops damaging short circuit currents. It is suitable for variable speed drive protection and power distribution applications.

Product Information

Standard Information

• Manufacturer: LITTELFUSE
• Series: JLLN

Technical Specifications

• Amperage Rating: 150 A
• Voltage Rating: 300 VAC / 125 VDC
• Interrupt Rating: 20/200 kA
• Body Size: 1.062 inches diameter x 2.437 inches length
• Body Type: Cartridge Blade
• Mounting Type: Bolted-On
• Terminal Type: Knife Blade
• Material: Melamine
• Indicating/Non-Indicating: Non-Indicating
• Class: T
