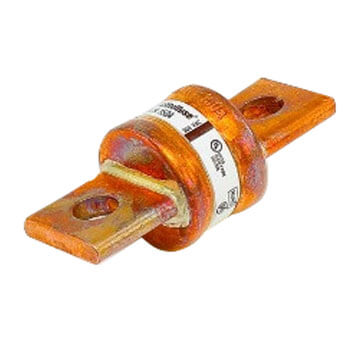

Littelfuse JLLN150 Fuse 300V F/A Class T 150A

Product Description

The Littelfuse JLLN150 Fuse provides fast-acting protection for non-inductive circuits and equipment. Designed for use in circuits with high ampere ratings, this Class T fuse offers reliable overload and short-circuit protection.

• Compact size; less than one-third the size of comparable Class R fuses.
• Designed for both non-inductive and inductive circuits.
• Rated for fast-acting overload protection.

Product Highlights

Space-saving design ideal for non-inductive circuits. Reliable protection with a current limiting design. Suitable for high-current circuits with compact protection needs.

Product Information

Standard Information

• Brand: Littelfuse
• Series: POWR-GARD JLLN
• Country of Origin: Mexico
• Standards: UL Listed, CSA Certified

Technical Specifications

• Amperage: 150 Amp
• Voltage: 300 Volt
• Body Type: Cartridge
• Length: 2-7/16 inches
• Diameter: 7/8 inches
• Interrupt Rating: 200kA at 300VAC, 20kA at 125VDC
• Material: Melamine
• Mounting Type: Holder
