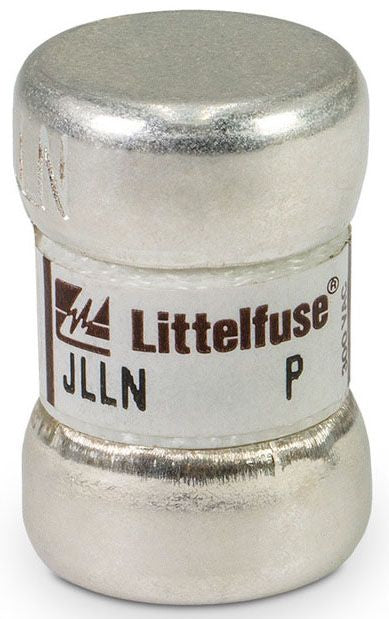

Littelfuse JLLN060P Fuse 60A 200KA Fast-Acting Class T

Product Description

The Littelfuse JLLN060P is a fast-acting fuse designed for effective circuit protection. This 60A fuse operates at 300VAC/160VDC with an interrupt rating of 200KA, suitable for both residential and commercial applications.

• Compact cartridge design, facilitating easier installation and use in restricted spaces.
• Class T rating, ensuring quick response to power overloads and short circuits.
• Features clip terminal connections for secure installation.

Product Highlights

Littelfuse's JLLN060P fuse offers robust protection with its highly current limiting design, stopping damaging currents faster than conventional devices. It is ideal for applications involving variable speed drives and advanced power conversion devices.

Product Information

Standard Information

• Brand: Littelfuse, INC.
• MPN: JLLN060P
• Material: Melamine

Technical Specifications

• Amperage Rating: 60A
• Voltage Rating: 300 VAC/160 VDC
• Interrupt Rating: 200 kA
• Mounting Type: Holder
• Terminal Type: Clip
• Fuse Type: Fast-Acting, Class T
