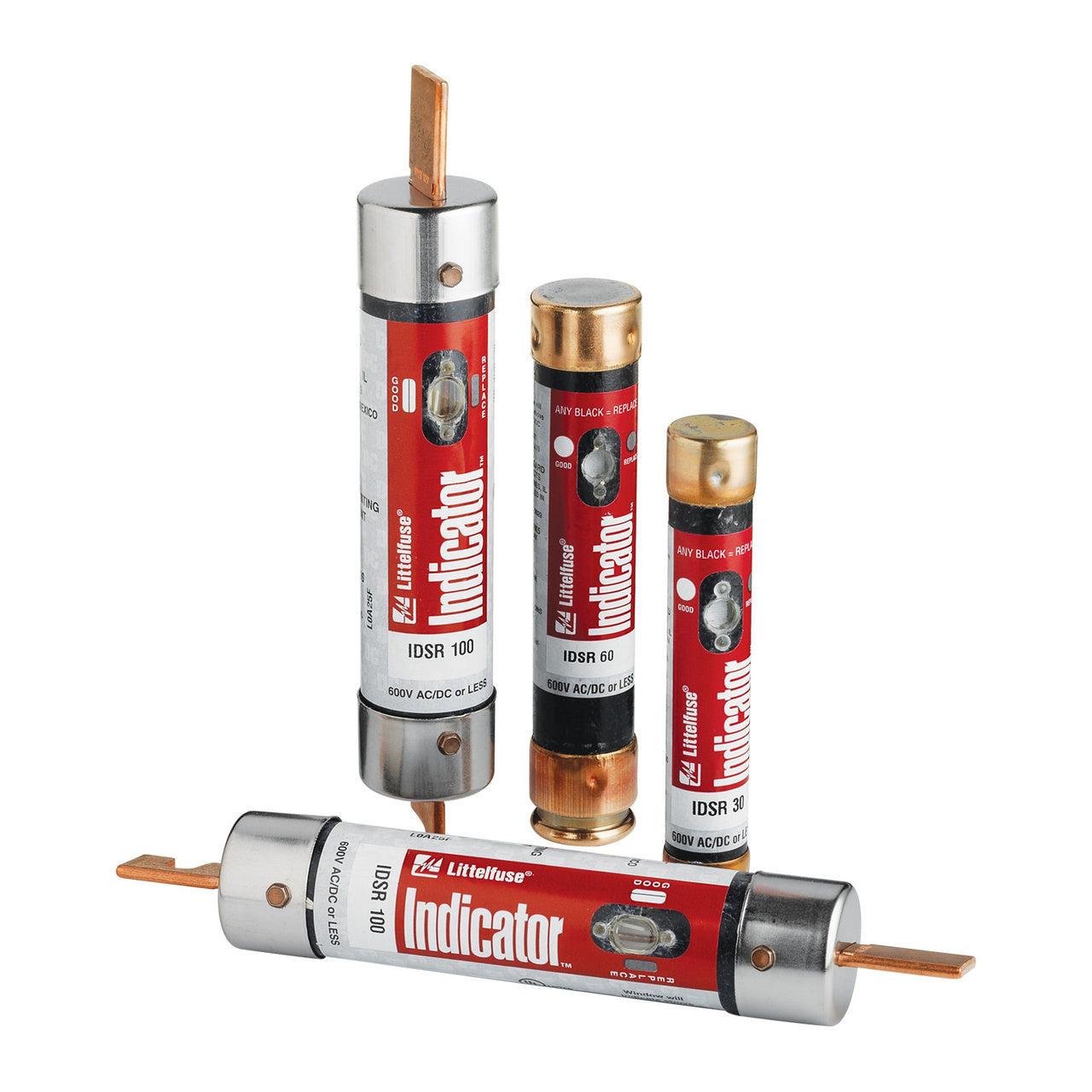

Littelfuse IDSR050 Current Limiting Time Delay Fuse 50A 600VAC/VDC

Product Description

The Littelfuse IDSR050 is a current limiting time delay fuse designed for various applications. It features a solid-state design that enhances reliability and helps in modern circuit protection. With this fuse, you can quickly identify faults, reducing downtime significantly. This unique fuse allows for quick assessment and fixes.

• Indicating fuse to pinpoint faulted circuits
• Time delay technology minimizes unnecessary power interruptions
• Approved for use in DC applications, ensuring broad compatibility

Product Highlights

The IDSR series fuse is engineered to offer quick visual feedback through its indicator window. This design minimizes the time spent locating outages and ensures efficient workflow.

Product Information

Standard Information

• Manufacturer: Littelfuse
• Catalog Number: IDSR050

Technical Specifications

• Amperage Rating: 50 A
• Voltage Rating: 600 VAC/VDC
• Interrupt Rating: 200/20 kA
• Body Size: 1-1/16 inches Diameter x 5-1/2 inches Length
• Body Type: Cylindrical
• Type: Current Limiting
• Terminal Type: Ferrule
• Indicating: Yes
• Application: DC Circuits, Motors, and Transformers
• Standards/Approvals: UL 248-12/198M, E81895, CSA Certified
