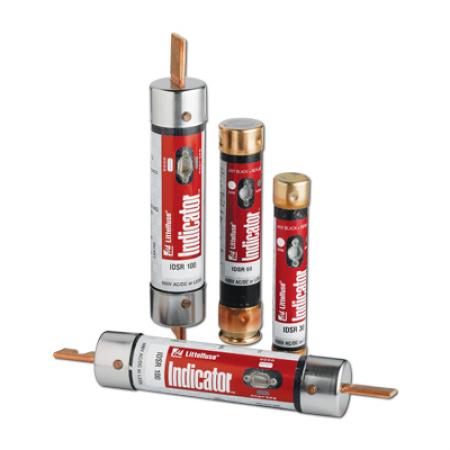

Littelfuse IDSR030 Fuse 600V AC/DC T/D Indicating RK5 30A

Product Description

The Littelfuse IDSR030 is a 30 amp fuse designed for AC and DC applications. This time-delay fuse is part of the IDSR series and is suitable for various electrical circuits. Featuring fuse indication, it quickly identifies whether a fuse is operational or has failed, enhancing system reliability and reducing downtime.

• Rated for both AC and DC applications
• Indicating feature for easy monitoring
• Built to meet UL 248-12 standards

Product Highlights

This fuse is ideal for use in protective circuits, including motors, transformers, and solar inverters. It limits current and provides a significant response time to protect electrical systems.

Product Information

Standard Information

• Manufacturer: Littelfuse
• Catalog Number: IDSR030

Technical Specifications

• Amperage Rating: 30 A
• Voltage Rating: 600 VAC/VDC
• Interrupt Rating: 200/20 kA
• Body Type: Cylindrical
• Element Type: Dual
• Material: Composite
• Mounting Type: Holder
• Response Time: 10 s
• Indication Type: Indicating
