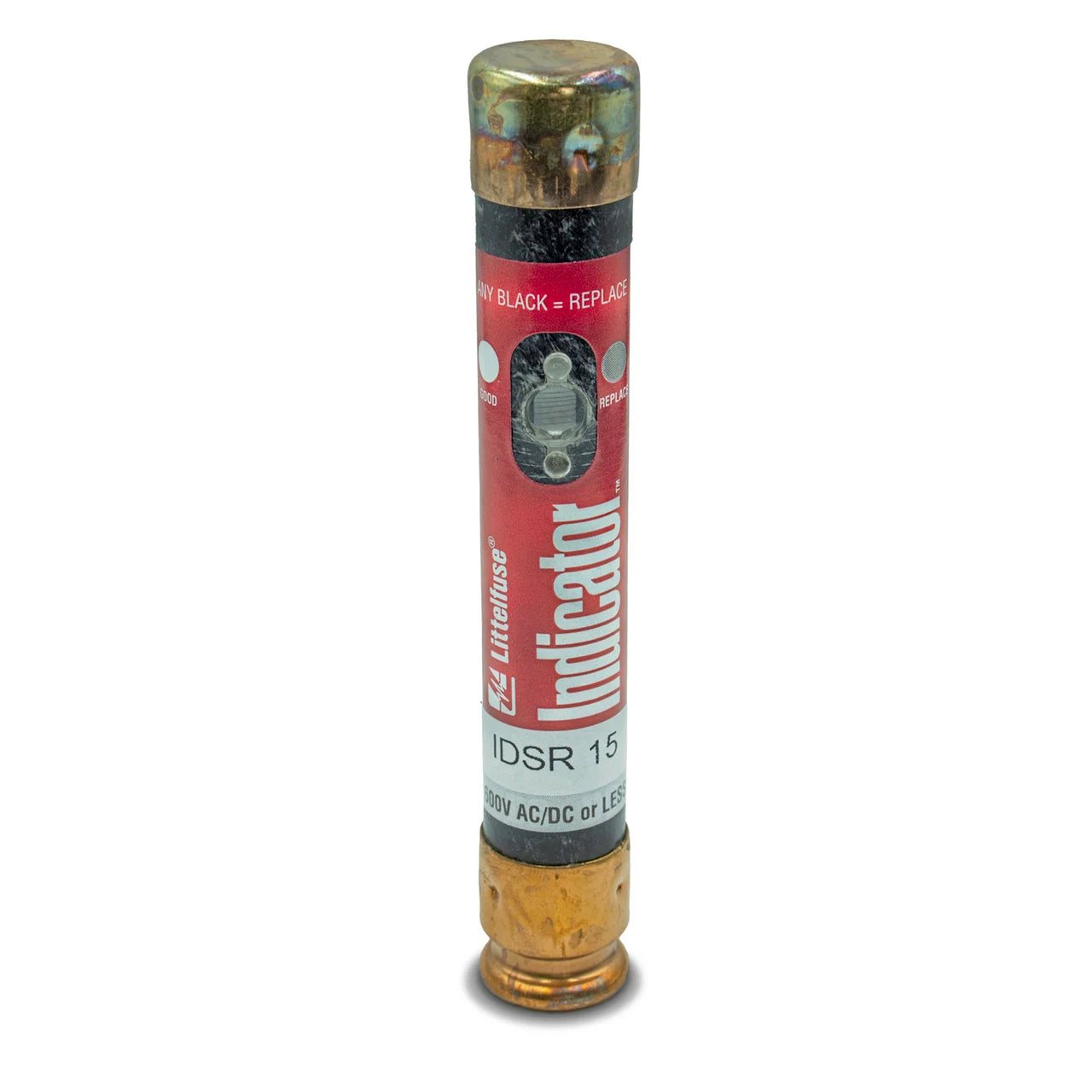

Littelfuse IDSR015 15 Amp 600 VAC/600 VDC Class RK5 Dual Element Time Delay Fuse

Product Description

The Littelfuse IDSR015 is a 15 Amp dual element time delay fuse designed for use in 600 VAC and 600 VDC applications. This fuse is part of the POWR-GARD IDSR Series and is engineered to increase efficiency in circuit protection.

• Indicating design allows for quick identification of blown fuses.
• Time delay capability helps prevent nuisance blowing in high inrush current situations.
• Constructed from durable melamine for enhanced reliability.

Product Highlights

This fuse features a patented design, providing a clear indication via its window when a current interruption occurs. Immediate visual feedback reduces downtime and maintenance costs.

Product Information

Standard Information

• Brand: Littelfuse
• MPN: IDSR015

Technical Specifications

• Voltage Rating: 600 V
• Amperage Rating: 15 A
• Interrupt Rating: 300 kAIC
• Size: Five inches long, zero point eighty-one inches diameter
• Material: Melamine
• Mounting: Ferrule
• Application: DC circuits, motors
• Sub Brand: POWR-GARD IDSR Series
