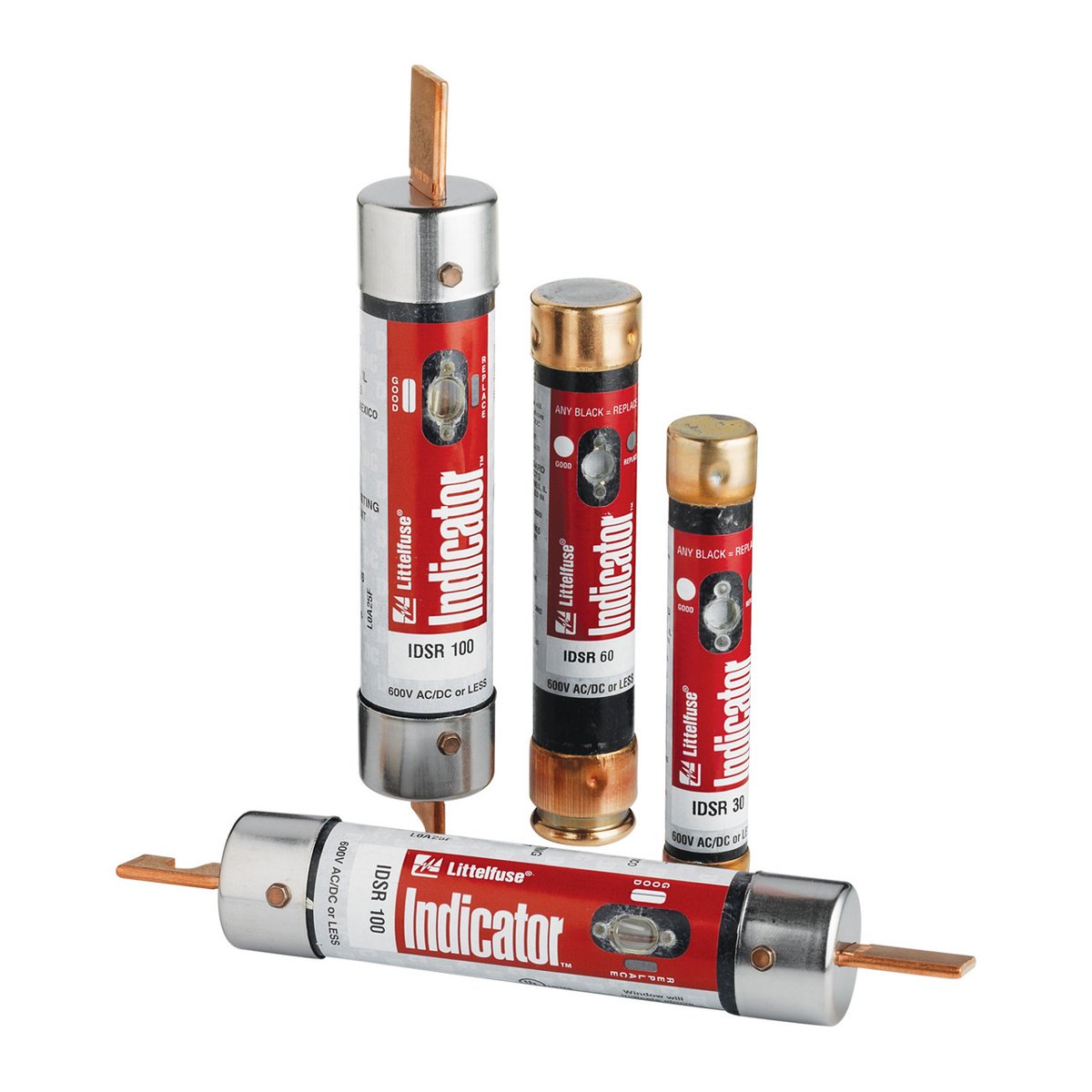

Littelfuse IDSR010 UL Class RK5 Dual Element Time-Delay Fuse with Indication

Product Description

The Littelfuse IDSR010 is a UL Class RK5 dual element time-delay fuse. It features a solid-state design that provides reliable circuit protection. This fuse includes an indicator to quickly identify open circuits, minimizing downtime during maintenance and repairs.

• Dual element design for efficient performance.
• Indicating feature for quick fault identification.
• Suitable for DC applications including solar inverters and motors.

Product Highlights

This fuse enables rapid identification of circuit issues, reducing the time spent troubleshooting. The indicator window allows users to see which circuit is open, facilitating quick repairs and preventing costly production delays.

Product Information

Standard Information

• Catalog Number: IDSR010
• Brand: Littelfuse

Technical Specifications

• Amperage Rating: 10 A
• Voltage Rating: 600 VAC/VDC
• Interrupt Rating: 200/20 kA
• Body Size: 13/16 in Dia x 5 in L
• Material: Composite
• Mounting Type: Holder
• Response Time: 10 s
• Indicating: Yes
• Standard: UL 248-12/198M
