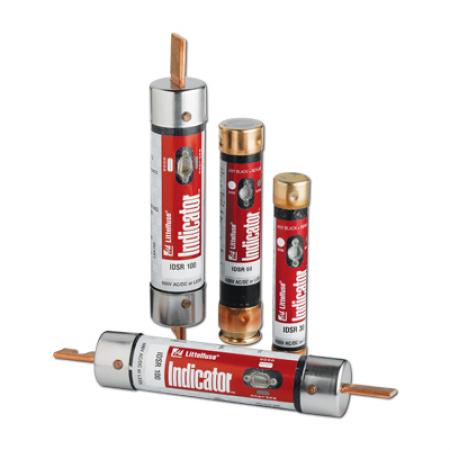

Littelfuse IDSR01.6 UL CLASS RK5 DUAL ELEMENT TIME-DELAY FUSE WITH INDICATION

Product Description

The Littelfuse IDSR01.6 is a UL Class RK5 dual element time-delay fuse with indication. It is designed for protecting electrical circuits against overloads and short circuits. The fuse operates with an amperage rating of 1.6 A and is suitable for both AC and DC applications at voltages up to 600 VAC/VDC.

• Current limiting feature enhances protection.
• Indicating design allows for easy identification of blown fuses.
• Compatible with various applications like solar inverters and motors.

Product Highlights

This fuse has a patented design that minimizes downtime by identifying open fuses immediately.

Product Information

Standard Information

• Manufacturer: Littelfuse
• Class: RK5

Technical Specifications

• Amperage Rating: 1.6 A
• Body Size: 13/16 in Dia x 5 in L
• Body Type: Cylindrical
• Element: Dual
• Interrupt Rating: 200/20 kA
• Material: Composite
• Mounting Type: Holder
• Response Time: 10 s
• Voltage Rating: 600 VAC/VDC
• Type: Current Limiting
• Indicating/Non-Indicating: Indicating
• Rejection/Non-Rejection: Rejection
• Terminal Type: Ferrule
• Series: IDSR
