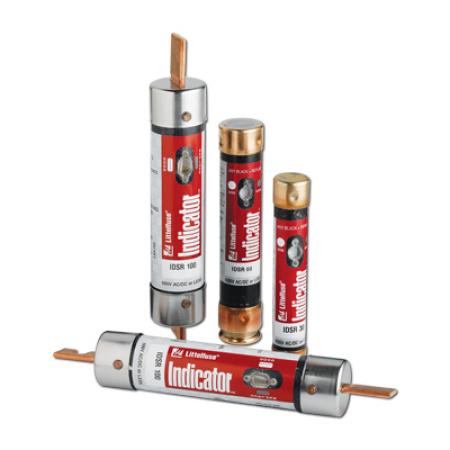

LITTELFUSE IDSR005 UL CLASS RK5 DUAL ELEMENT TIME-DELAY FUSE WITH INDICATION

Product Description

The LITTELFUSE IDSR005 is a UL Class RK5 dual element time-delay fuse designed for various electrical applications. This fuse is current limiting and provides essential protection in a cylindrical body with ferrule terminals. It operates at five amps and is rated for six hundred volts AC or DC, with a ten second response time. The fuse has an interrupt rating of two hundred to twenty thousand kiloamps.

• Dual element design for better performance
• Safety indication for clear status
• Efficient response time

Product Highlights

The LITTELFUSE IDSR005 prevents costly downtime by pinpointing open circuits quickly and has been tested for high interrupt ratings.

Product Information

Standard Information

• Manufacturer: LITTELFUSE
• Current Rating: 5 A

Technical Specifications

• Body Size: 13/16 in Dia x 5 in L
• Body Type: Cylindrical
• Class: RK5
• Element: Dual
• Indicating/Non-Indicating: Indicating
• Interrupt Rating: 200/20 kA
• Material: Composite
• Mounting Type: Holder
• Response Time: 10 s
• Series: IDSR
• Terminal Type: Ferrule
• Type: Current Limiting
• Voltage Rating: 600 VAC/VDC
