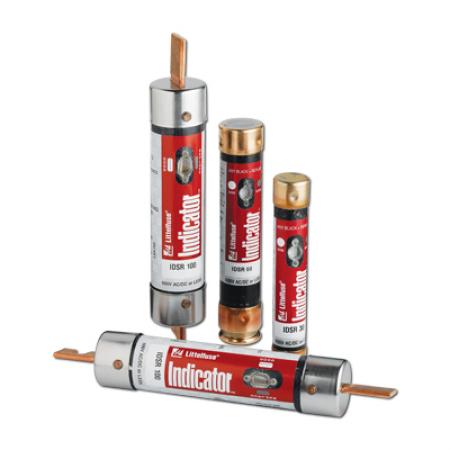

LITTELFUSE IDSR002 UL CLASS RK5 DUAL ELEMENT TIME-DELAY FUSE WITH INDICATION

Product Description

The LITTELFUSE IDSR002 is a UL Class RK5 dual element time-delay fuse designed for current limiting applications. With a current rating of two amps and a voltage rating of six hundred VAC/VDC, this fuse features a time-delay function that aids in reducing unnecessary outages. The cylindrical body measures thirteen-sixteenths inches in diameter and five inches long.

• Indicating functionality for quick status check
• Works effectively in DC circuits and solar inverters
• Mounts using a holder terminal type

Product Highlights

This fuse is particularly suitable for use in transformers, solenoids, and fluorescent lighting applications.

Product Information

Standard Information

• Manufacturer: LITTELFUSE
• Product Name: UL CLASS RK5 DUAL ELEMENT TIME-DELAY FUSE WITH INDICATION

Technical Specifications

• Amperage Rating: 2 A
• Voltage Rating: 600 VAC/VDC
• Interrupt Rating: 200/20 kA
• Response Time: 10 s
• Body Size: 13/16 in Dia x 5 in L
• Body Type: Cylindrical
• Element: Dual
• Indicating/Non-Indicating: Indicating
• Rejection/Non-Rejection: Rejection
• Material: Composite
• Mounting Type: Holder
• Terminal Type: Ferrule
• Type: Current Limiting
• Series: IDSR
