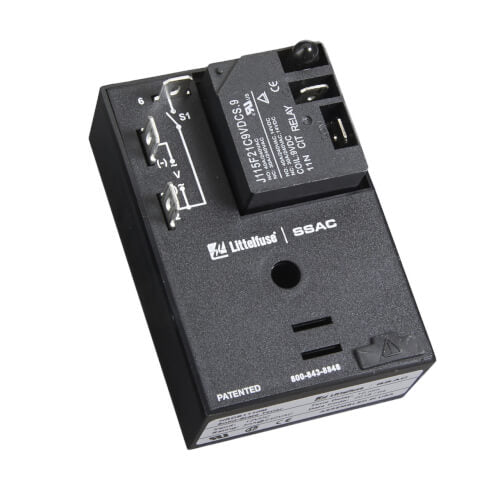

LITTELFUSE HRDB423 SPDT 0.1 to 10 min Delay on Break Time Delay 120V

Product Description

The Littelfuse HRDB423 SPDT Delay on Break Time Delay provides robust control for the precise timing of operations in electrical circuits. Designed for efficient management of device activation sequences, this unit supports 120V input voltage.

• Offers adjustable delays from 0.1 to 10 minutes for versatile application.
• Features isolated SPDT output contacts capable of handling substantial loads.
• Incorporates microcontroller technology to achieve tight repeat accuracy of +/-0.5%.

Product Highlights

This time delay switch is ideal for heavy-duty applications including compressors, pumps, and HVAC units. It enhances operational efficiency and reliability in commercial electrical setups.

Technical Specifications

• Input Voltage: 120VAC
• Output Type: Electromechanical relay
• Loading Capacity: SPDT-NO: 30A for 125/240VAC; SPDT-NC: 15A
• Operating Temperature Range: -40 degrees to 140 degrees Fahrenheit
• Mounting: Surface mount with standard screws
