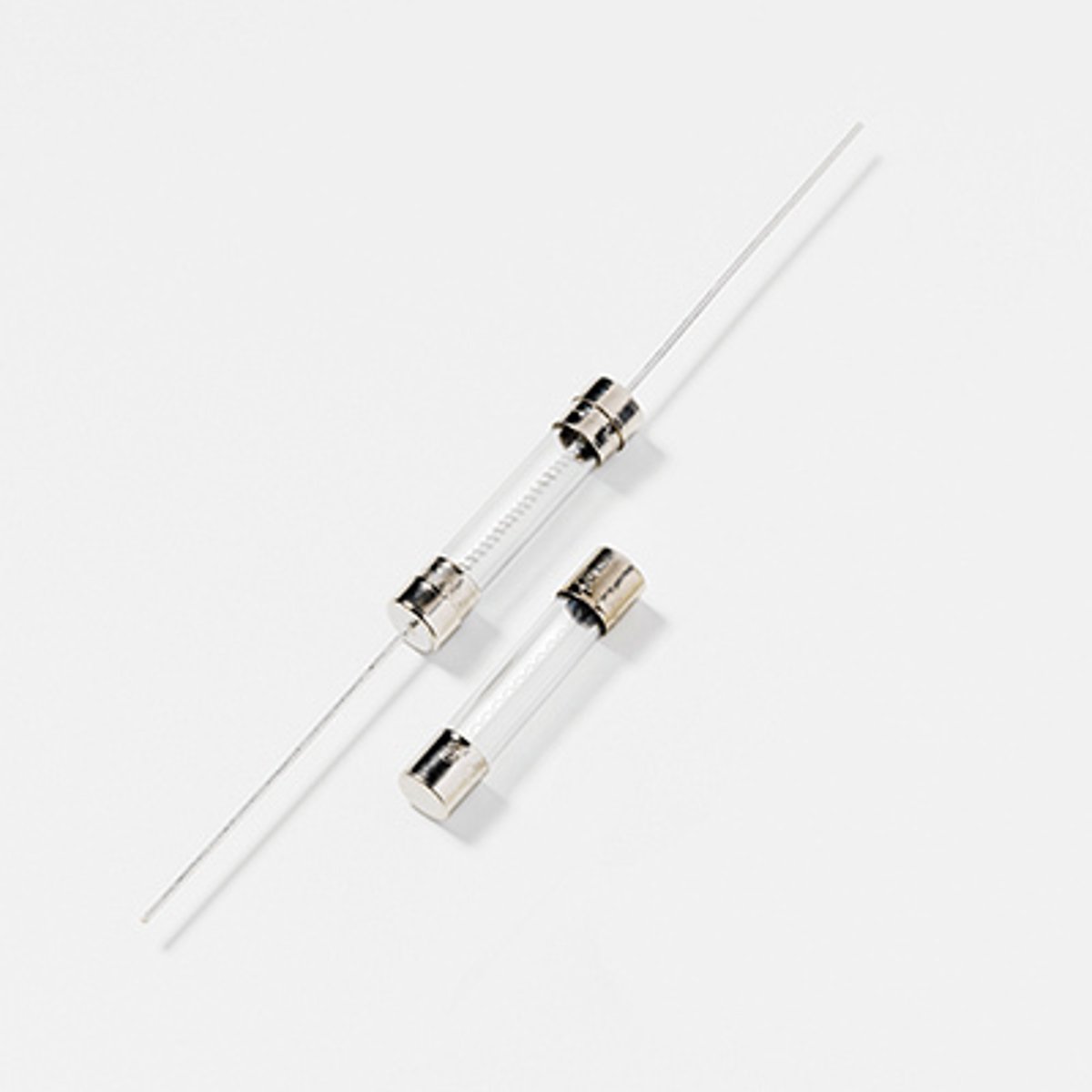

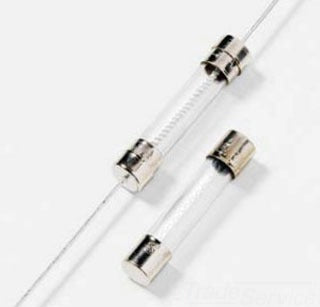

Littelfuse H313004P Cartridge Fuse Type 3AG Time Delay 250 VAC 4 A

Product Description

The Littelfuse H313004P is a Type 3AG Time Delay cartridge fuse designed for various applications. This fuse offers reliable performance in circuit protection. It features a time delay for overload situations, making it ideal for protecting inductive loads such as motors and transformers.

• Time delay design enhances protection for inductive loads
• Non-indicating fuse with glass body for visual confirmation of operation
• Rated at four amperes and two hundred fifty volts AC

Product Highlights

This fuse is used for supplementary protection in electronic equipment and appliances. Its time delay allows for handling inrush current without tripping unnecessarily, ensuring a reliable operation.

Product Information

Standard Information

• Brand: Littelfuse
• MPN: H313004P

Technical Specifications

• Voltage Rating: 250 VAC
• Amperage Rating: 4 A
• Interrupt Rating: 200 A
• Response Time: 5 to 30 seconds
• Body Size: 1/4 inch diameter x 1-1/4 inch length
• Body Type: Cartridge
• Materials: Glass
• Mounting Type: Holder
