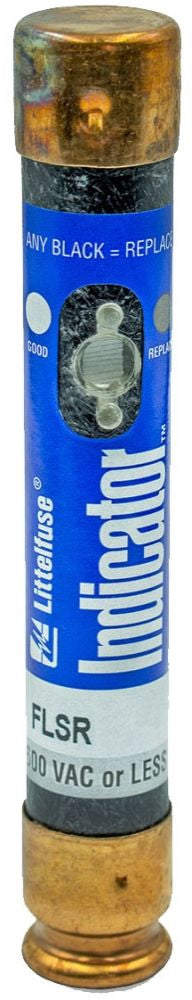

Littelfuse FLSR6.25ID Time Delay Fuse 6-1/4 AMP 600 VAC DUAL ELEMENT

Product Description

Littelfuse FLSR6.25ID is a time delay fuse rated at six point two five amps and six hundred volts AC. It is a dual element, indicating fuse designed to provide reliable protection against overloads and short circuits. This fuse is ideal for applications that require a time delay feature, particularly in circuits with motors.

• Reduces downtime during maintenance.
• Long lifecycle with reduced nuisance openings.
• Indicating feature enhances safety by indicating blown fuses.

Product Highlights

The Littelfuse FLSR6.25ID enhances operation safety in electrical systems by providing effective overload protection.

Product Information

Standard Information

• Manufacturer: Littelfuse
• MPN: FLSR6.25ID

Technical Specifications

• Amperage Rating: 6.25 A
• Voltage Rating: 600 VAC/300 VDC
• Interrupting Rating: 200000 Ampere (Symmetrical), 20000 Ampere (DC)
• Body Size: 13/16 in diameter x 5 in length
• Terminal Type: Ferrule
• Class: RK5
• Frequency Rating: 50/60 Hz
