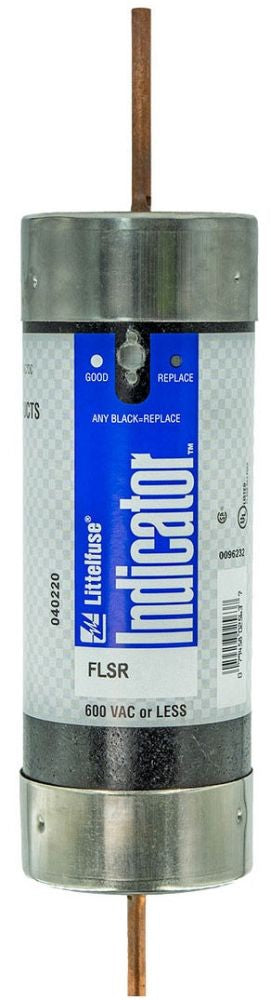

Littelfuse FLSR500ID 500 Amp 600 VAC 300 VDC Class RK5 Dual Element Time Delay Fuse with Indicator

Product Description

Littelfuse FLSR500ID is a 500 Amp dual element time delay fuse designed for use in various electrical applications. With voltage ratings of 600 VAC and 300 VDC, this fuse is suitable for protecting circuits from overloads and short circuits. Its innovative blown fuse indicator provides a quick visual cue for maintenance personnel, reducing downtime and improving safety.

• 500 Amp rating
• Designed for 600 VAC and 300 VDC applications
• Features a blown fuse indicator for safety

Product Highlights

The FLSR500ID fuse is appropriate for industrial use and can handle service entrance switches, motor control circuits, and distribution panelboards while minimizing operational risks.

Product Information

Standard Information

• Catalog Number: FLSR500ID
• Manufacturer: Littelfuse

Technical Specifications

• Type: Class RK5
• Voltage Rating: 600 VAC / 300 VDC
• Amperage Rating: 500 A
• Body Size: 3-3/32 inches Diameter x 13-3/8 inches Length
• Interrupting Rating: 200000 Ampere (Symmetrical), 20000 Ampere (DC)
• Terminal Type: Knife Blade
• Application: General Purpose
• Approval: UL 248-12, CSA, QPL-WF-1814, CE
