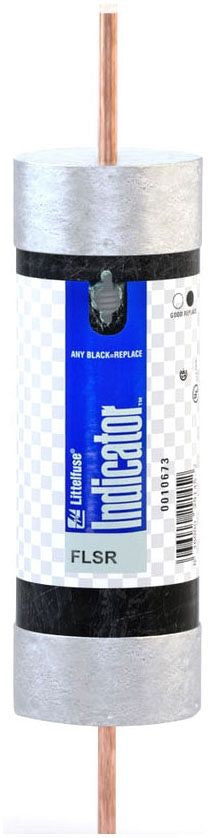

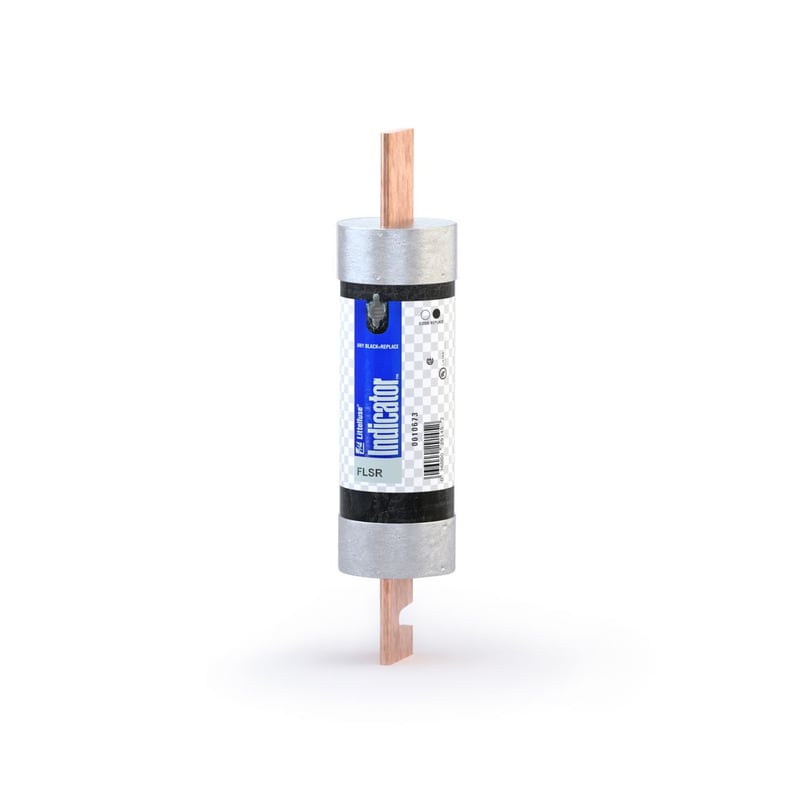

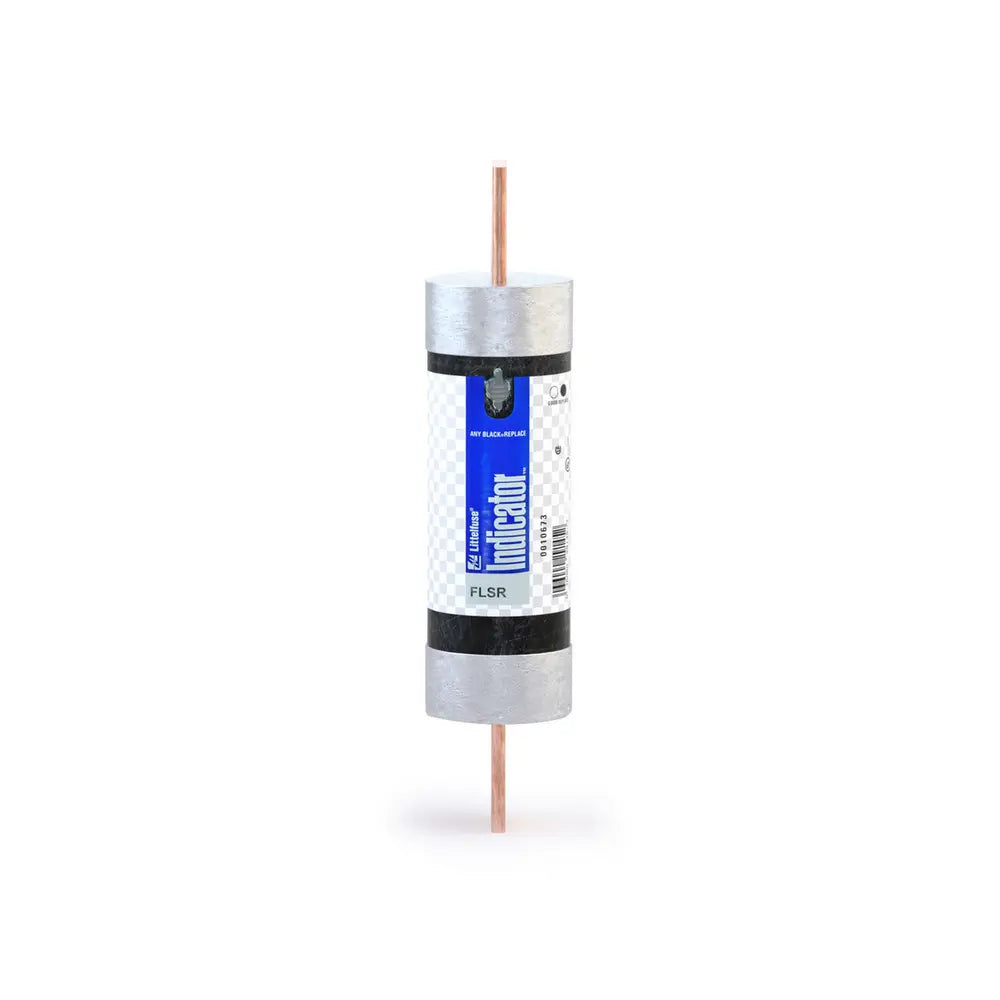

Littelfuse FLSR350ID Current Limiting Time Delay Fuse 350 A 600 VAC/300 VDC 200/20 kA

Product Description

Littelfuse FLSR350ID is a current limiting time delay fuse designed for effective circuit protection. This fuse is rated for 350 Amperes and supports voltage levels up to 600 VAC and 300 VDC. It offers a high interrupt rating of 200/20 kA making it suitable for heavy-duty applications.

• 350 A current limiting time delay feature
• Voltage ratings: 600 VAC and 300 VDC
• 200/20 kA interrupt rating for robust circuit protection

Product Highlights

This fuse provides reliable protection for service entrance switches, transformers, and all general-purpose circuits. Its dual-element design allows faster short circuit protection and minimizes nuisance blowing.

Product Information

Standard Information

• Manufacturer: Littelfuse
• Application: Service Entrance Switches, Transformers, Motor Control Circuits

Technical Specifications

• Class: RK5
• Element: Dual
• Body Type: Cylindrical
• Body Size: 2-19/32 in Dia x 11-5/8 in L
• Voltage Rating: 600 VAC/300 VDC
• Amperage Rating: 350 A
• Frequency Rating: 50/60 Hz
• Response Time: 10 s
• Rejection Type: Rejection
• Indicating Type: Indicating
• Terminal Type: Knife Blade
• Country of Origin: Mexico
