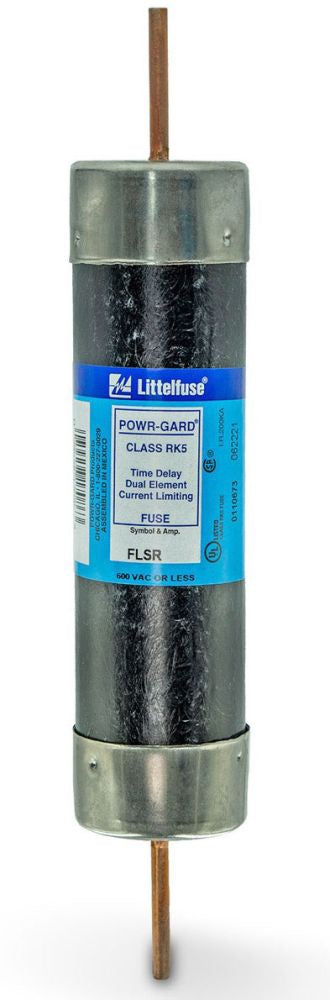

Littelfuse FLSR110 Fuse 600V Time Delay 110 Amp

Product Description

The Littelfuse FLSR110 is a time-delay fuse specifically engineered for safeguarding high-current circuits. Comprising a 600V voltage rating and a current rating of 110 amps, this essential protective device reliably handles overcurrent conditions through delayed response, enhancing circuit safety particularly in industrial and commercial setups.

• Rated for 600V AC and 300V DC, effectively controls power in high voltage systems.
• Delay feature allows brief overloads without tripping, ideal for circuits with motors and transformers.
• Durable construction suited for rigorous applications, ensuring long-lasting performance.

Product Highlights

This fuse features a robust cylindrical composite body, measuring 9-5/8 inches in length and 1-27/32 inches in diameter. It supports a dual-element design which significantly enhances its capacity to manage and halt excessive current flows, preventing potential damage to electrical components.

Product Information

Standard Information

• Brand: Littelfuse
• Series: POWR-GARD FLSR Series

Technical Specifications

• Voltage Rating: 600V AC/300V DC
• Current Rating:: 110A
• Interrupt Rating: 200/20 kA
• Body Material:: Composite
• Terminal Type:: Knife Blade
• Length:: 9-5/8 inches
• Diameter:: 1-27/32 inches
