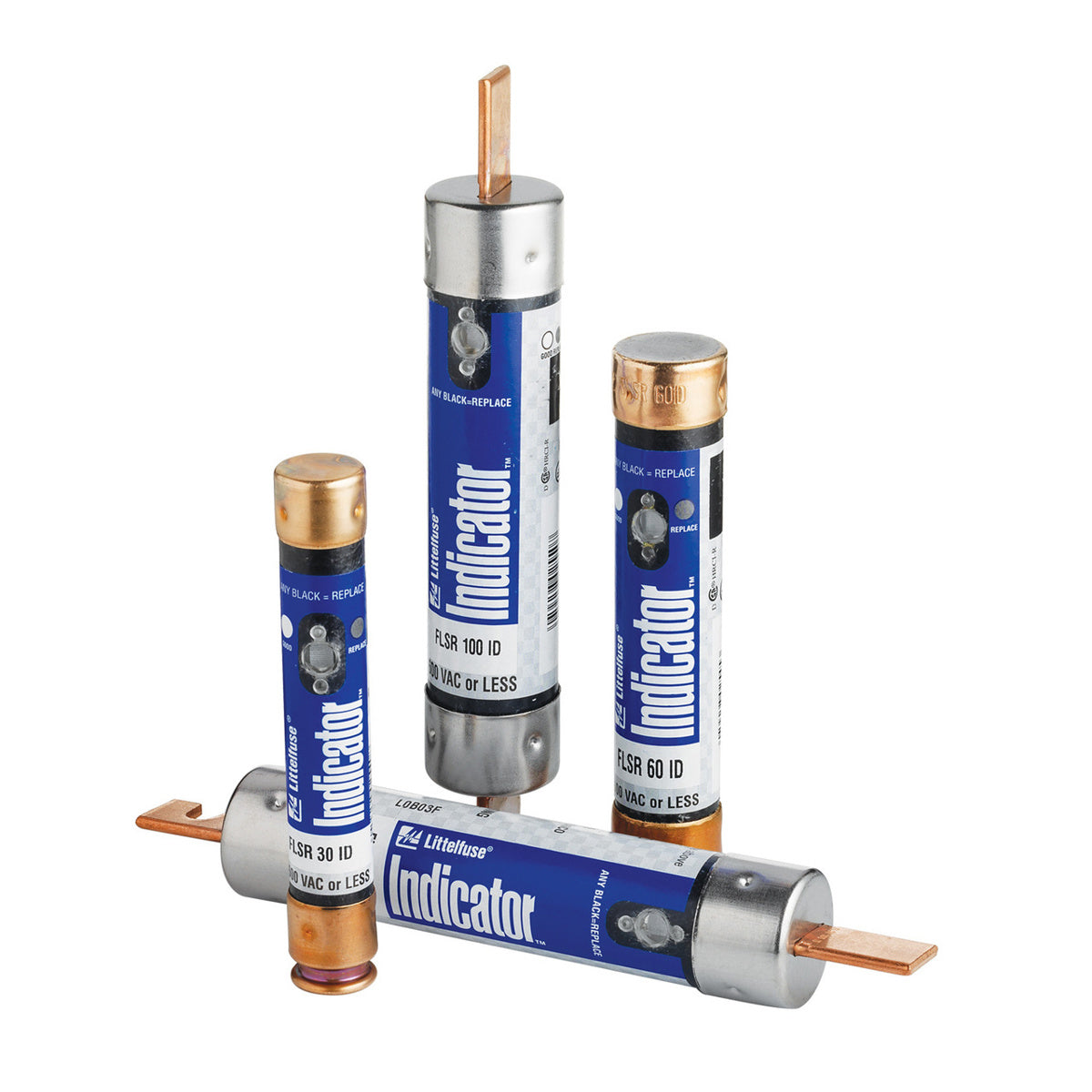

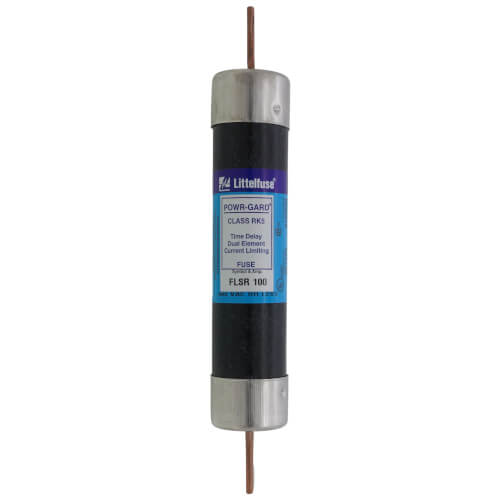

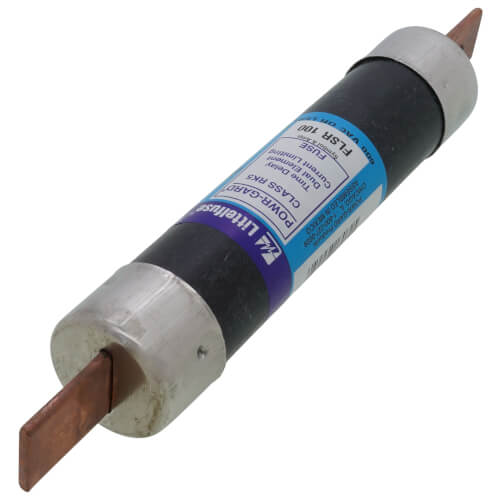

Littelfuse FLSR100 Time Delay Fuse 100 Amp 600VAC 300VDC Class RK5

Product Description

The Littelfuse FLSR100 is a high-performance, dual-element time-delay fuse, ideal for protecting electrical circuits in industrial environments. It features a voltage rating of 600 VAC and 300 VDC, making it suitable for a wide range of applications. This fuse is part of the FLSR series and is crafted to provide robust circuit protection, especially in systems that incorporate motors.

• Designed to handle up to 100 amps with a superior interruption rating of 200,000 AIR.
• Utilizes a time-delay function to safeguard against transient spikes and surges.
• Dual-element construction enhances reliability and performance in harsh conditions.

Product Highlights

The Littelfuse FLSR100 fuse offers significant benefits over conventional fuses, including controlled response to overloads and short circuits. It is widely recognized for its dependable and precise operation.

Product Information

Standard Information

• Brand: Littelfuse
• Model: FLSR100

Technical Specifications

• Type: Class RK5
• Amperage: 100 Amp
• Voltage Rating: 600 VAC / 300 VDC
• Interrupt Rating: 200,000 AIR at 600 VAC, 20,000 AIR at 300 VDC
• Body Material: Fiberglass
• Element: Dual
• Fits Fuse Block Style: Rejection
