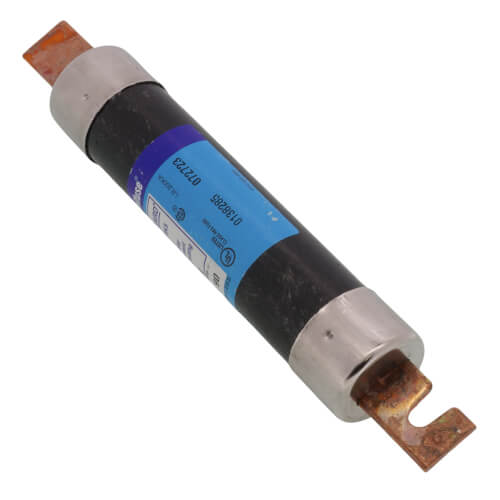

Littelfuse FLSR090 Class RK5 Dual Element Time Delay Fuse 90 Amp 600 Volt AC 300 Volt DC

Product Description

Littelfuse's FLSR090 class RK5 Dual Element Time Delay Fuse features a superior time-delay characteristic tailored for circuits with motors, enhancing circuit protection and safety. Engineered for use in service entrances, switchboards, motor control centers, and more, it provides reliable performance in a wide range of industrial and commercial applications.

• 90 Amp, 600 Volt AC, 300 Volt DC rating.
• Dual-element, time-delay fuse design that optimizes circuit protection.
• Superior interruption performance with 200,000 AIR for handling short circuits.

Product Highlights

Constructed to offer dependable protection against overcurrents up to 200,000 amperes, the FLSR090 displays a measured delay to handle high inrush currents without sacrificing protection. It ensures operational stability and reliability through precise manufacturing.

Product Information

Technical Specifications

• Amp Rating: 90 Amp
• Voltage: 600 Volt AC / 300 Volt DC
• Interrupt Rating: 200,000 amperes at 600V AC, 20,000 amperes at 300V DC
• Time Delay: Dual Element
• Compliance: UL Listed, CSA Certified
• Material: Fiberglass body
• Termination: Knife Blade
• Dimensions: 1-5/16 inches in diameter by 7-7/8 inches length
