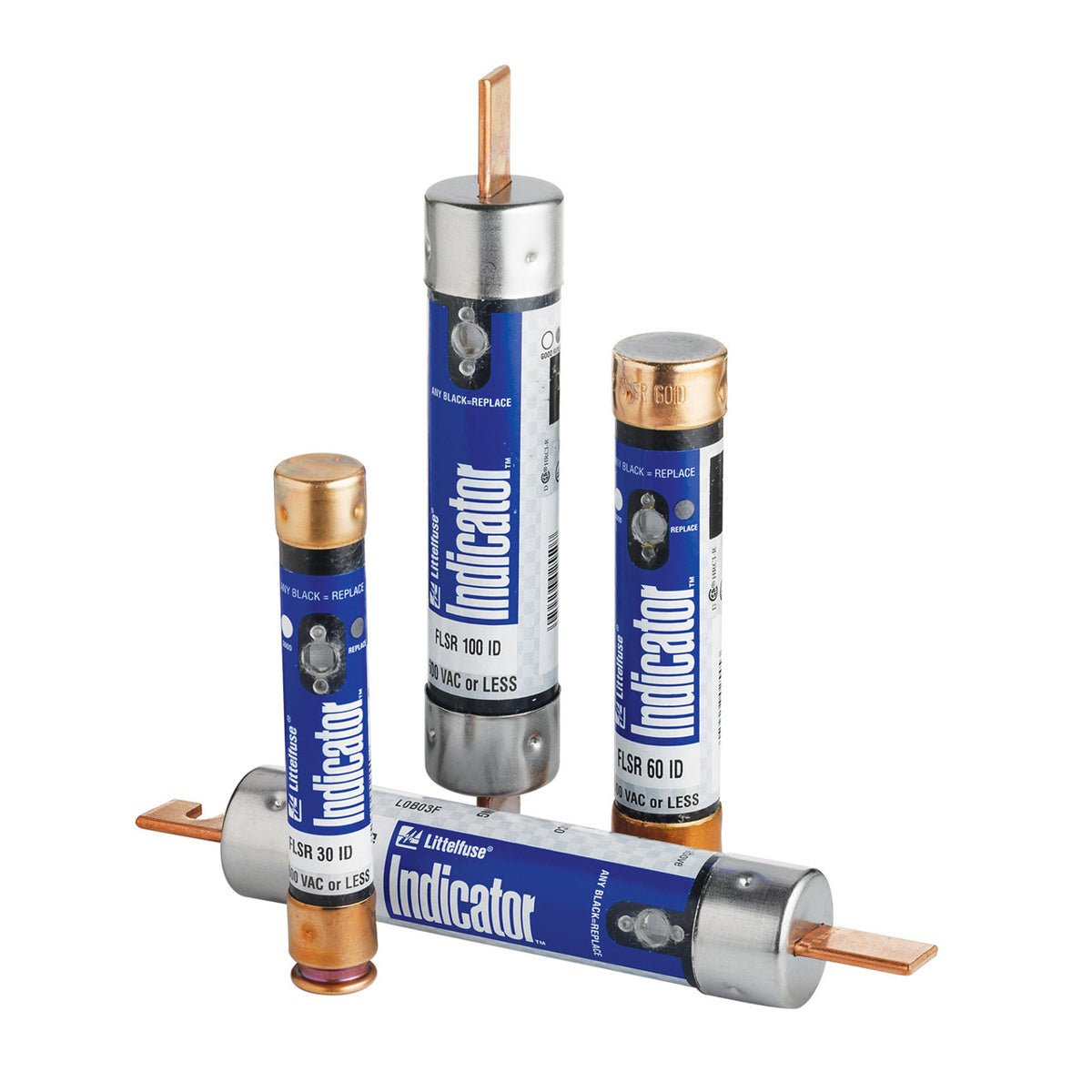

Littelfuse FLSR070ID Current Limiting Time Delay Fuse 70 A 600 VAC 200/20 kA RK5

Product Description

Littelfuse FLSR070ID is a current limiting, time delay fuse. This fuse is rated for seventy amps and suitable for use at up to six hundred volts AC/DC. It features a dual-element design, enhancing performance and reliability in various applications. With visual blown fuse indication, it minimizes downtime and allows for quick identification and replacement.

• 70 Amp rating
• Dual-element time delay design
• Visual blown fuse indication

Product Highlights

Ideal for service entrance switches, transformers, and motor control applications, this fuse provides excellent overload and short circuit protection.

Product Information

Standard Information

• Manufacturer: Littelfuse
• Country of Origin: Mexico
• Application: General Purpose

Technical Specifications

• Catalog Number: FLSR070ID
• Voltage Rating: 600 VAC/300 VDC
• Interrupt Rating: 200000 Ampere (Symmetrical)
• Element Type: Dual
• Frequency Rating: 50/60 Hz
• Body Type: Cylindrical
• Diameter: 1-5/16 inches
• Length: 7-7/8 inches
