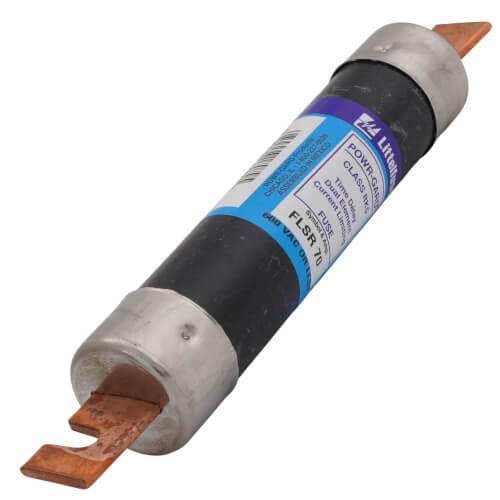

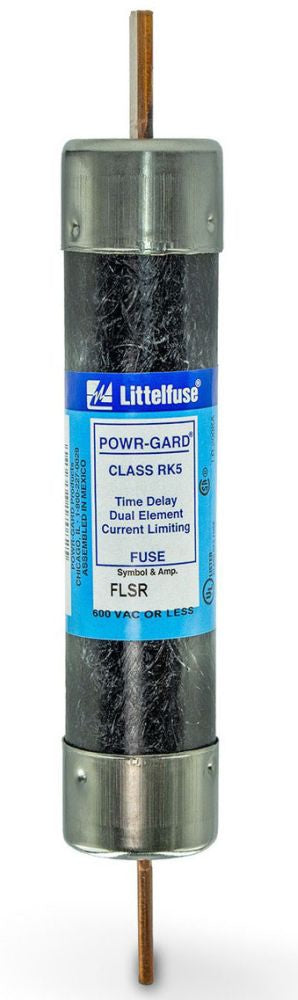

Littelfuse FLSR070 600V RK5 TD Fuse 70 Amp

Product Description

Littelfuse FLSR070 is a 600V RK5 time-delay fuse, known for its reliability in circuit protection. Engineered for dual-element and time-delay applications, this fuse is ideal for protecting motors and other critical components in industrial settings.

• Dual-element design enhances circuit protection
• Time-delay feature allows passing temporary overloads without tripping
• Rated for 70 amps with a 600VAC/300VDC voltage rating

Product Highlights

Featuring a 200,000 AIC rating at 600VAC, the FLSR070 offers robust protection against short circuits. It fits standard rejection-style fuse blocks, with a stud mount for secure installation.

Product Information

Standard Information

• Manufacturer: Littelfuse
• Model: FLSR070

Technical Specifications

• Amperage Rating: 70A
• Voltage Rating: 600 VAC/300 VDC
• Interrupt Rating: 200kA at 600VAC, 20kA at 300VDC
• Fuse Size: 7-7/8 inches length x 1-5/16 inches diameter
• Class: RK5
• Element: Dual
• Body Material: Composite
