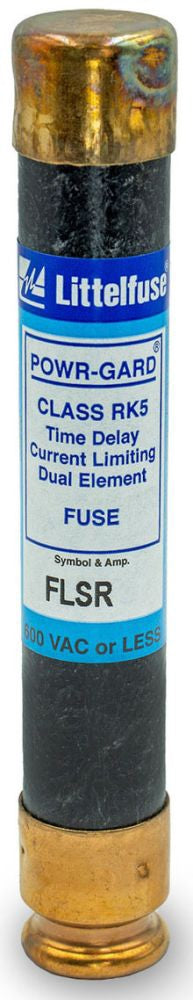

Littelfuse FLSR07.5 Time Delay Fuse 7.5 AMP 600 VAC Dual Element FUSE

Product Description

The Littelfuse FLSR07.5 is a time delay fuse designed for reliable protection in electrical systems. This dual-element fuse is rated at seven and one-half amps and can handle voltages up to six hundred VAC. It is a part of the RK5 class, ensuring that it provides effective overload and short-circuit protection.

• Automated, precision-manufactured parts for accurate overload response
• Faster action against short circuits compared to non-current limiting devices
• Reliable interruption of all overcurrents

Product Highlights

The FLSR series fuses are widely used in service entrance switches, transformers, and motor control circuits. They excel in various applications where dependable performance is crucial.

Product Information

Standard Information

• Manufacturer: Littelfuse
• Approval: UL 248-12, CSA, QPL-WF-1814, CE

Technical Specifications

• Amperage Rating: 7.5 A
• Voltage Rating: 600 VAC/300 VDC
• Interrupting Rating: 200000 Ampere (Symmetrical), 20000 Ampere (DC)
• Body Size: 13/16 inches Diameter x 3 inches Length
• Terminal Type: Ferrule
• Type: Class RK5
• Response Time: 10 seconds
