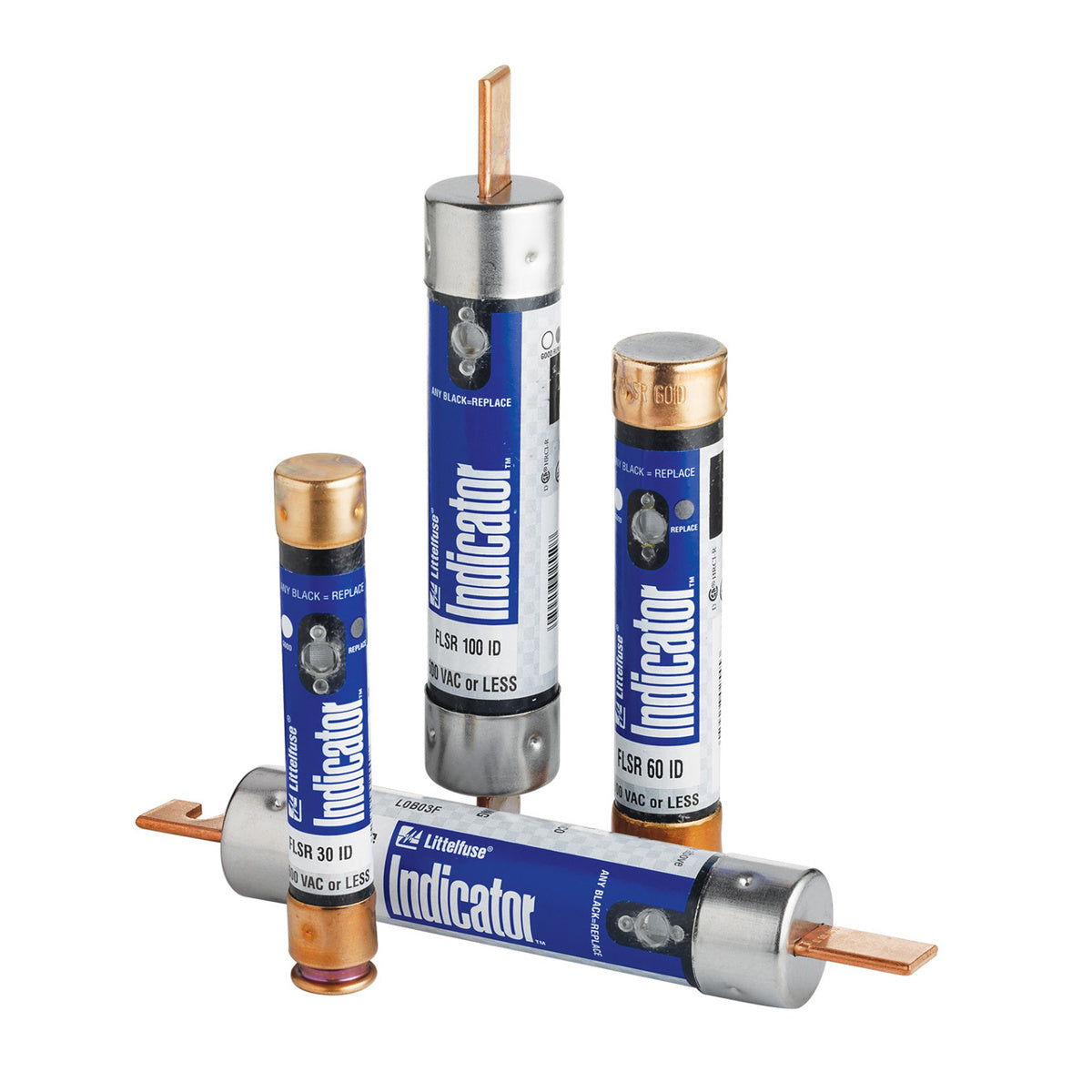

Littelfuse FLSR045 Time Delay Class RK5 Fuse 600V 45A

Product Description

The Littelfuse FLSR045 fuse offers robust protection for circuits, particularly those involving motors. This UL Class RK5 dual-element time-delay fuse is essential in safeguarding electrical setups from overcurrent conditions.

• Dual-element, time-delay design enhances circuit safety.
• Rated for 600V and 45A, suitable for heavy-duty applications.
• Complies with UL 248-12 and CSA LR29862 standards.

Product Highlights

FLSR045 is widely recognized for its high breaking capacity up to 200 kA and reliable performance under high-voltage conditions. It is specially formulated to prevent immediate tripping due to transient spikes, making it ideal for complex motor systems.

Product Information

Standard Information

• Brand: Littelfuse
• Part Number: FLSR045

Technical Specifications

• Amperage: 45A
• Voltage: 600 VAC/300 VDC
• Interrupt Rating: 200 kA at 600 VAC, 20 kA at 300 VDC
• Time Delay: Designed to protect against sustained overcurrents
• Body Type: Cylindrical composite construction
• Terminal Type: Ferrule
