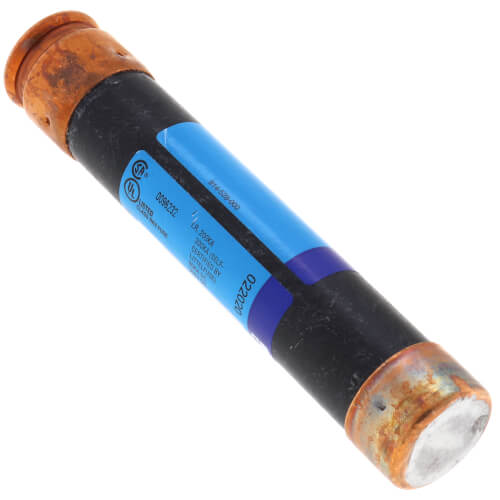

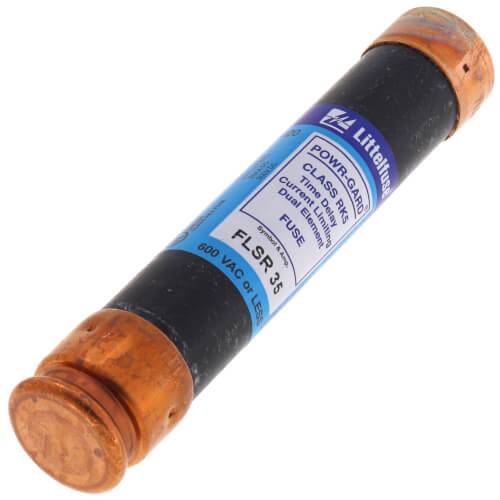

Littelfuse FLSR035 Dual Element Class RK5 Rejection Time Delay Fuse 35 Amp 600 Volt AC 300 Volt DC Powr-Gard

Product Description

The Littelfuse FLSR035 fuse offers advanced protection for industrial and commercial electrical circuits, featuring a dual element and time-delay functionality. Suitable for applications with frequent transient overcurrent conditions.

• Class RK5 with time-delay for motor protection.
• Dual element design enhances circuit security.
• Rated at 35 Amp, 600 Volt AC, and 300 Volt DC.

Product Highlights

This fuse is engineered for reliability in industrial environments, ensuring consistent performance and protection against overloads and short circuits. Its time-delay feature allows for temporary overcurrent conditions to clear without opening the fuse, reducing downtime and maintenance costs.

Product Information

Standard Information

• Brand: Littelfuse
• Model: FLSR035

Technical Specifications

• Amperage: 35 Amp
• Voltage: 600 Volt AC, 300 Volt DC
• Interrupt Rating: 200 kA at 600V AC, 20 kA at 300V DC
• Element Type: Dual
• Time Delay: Yes
• Terminal Type: Ferrule
• Body Material: Fiberglass
• Product Type: Fuse
• Standards: UL 248-12, CSA Certified
