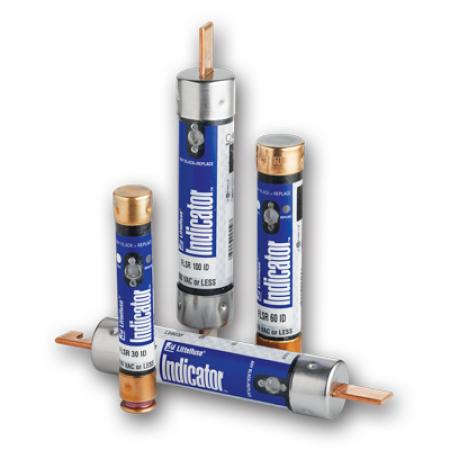

LITTELFUSE FLSR03.2ID Ul Class Rk5 Dual-Element Time-Delay Fuse With Indication

Product Description

The LITTELFUSE FLSR03.2ID is a UL class RK5 dual-element time-delay fuse with indication. It is designed for current limiting applications with a rating of three point two amps. This fuse operates at six hundred volts alternating current and three hundred volts direct current. It can interrupt current levels of two hundred or twenty kiloamperes. The FLSR series is built for reliable performance in service entrance switches, transformers, and general-purpose circuits.

• Reliable interruption of all over currents up to two hundred kiloamperes
• Fast-acting short circuit protection
• Indicating type for easy identification of blown fuses

Product Highlights

This fuse ensures accurate and consistent response to overloads and short circuits. It features a cylindrical body design and is made of composite material. The fusible link has a response time of ten seconds.

Product Information

Standard Information

• Manufacturer: LITTELFUSE
• MPN: FLSR03.2ID

Technical Specifications

• Amperage Rating: 3.2 A
• Voltage Rating: 600 VAC / 300 VDC
• Interrupt Rating: 200 / 20 kA
• Body Size: 13/16 in Dia x 5 in L
• Body Type: Cylindrical
• Class: RK5
• Element: Dual
• Frequency Rating: 50 / 60 Hz
• Indicating: Yes
• Mounting Type: Holder
• Response Time: 10 s
• Material: Composite
• Terminal Type: Ferrule
