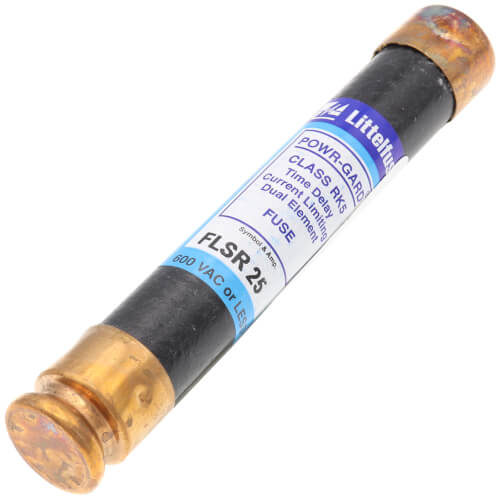

Littelfuse FLSR025 600V RK5 Time Delay Fuse

Product Description

Littelfuse FLSR025 is a robust RK5 dual-element time-delay fuse, designed to operate at 600V and handle a current up to 25 amps. This fuse is ideal for high energy circuits and is widely acknowledged for its reliability in protecting electrical components from overcurrent conditions.

• 600V rating suitable for high-energy circuits.
• 25 amps current capacity to handle standard industrial loads.,
• Time-delay feature allows temporary overcurrent conditions without tripping.

Product Highlights

Constructed from durable ceramic with silver-plated end caps to ensure optimal conductivity and resistance to heat.

Product Information

Standard Information

• Usage: Suitable for general purposes such as service entrance switches, switchboard mains, and motor control centers.
• Safety Features: Confidently interrupts all overcurrents up to 200kA.

Technical Specifications

• Material: Ceramic body with silver-plated end caps.
• Dimensions: 5 inches length x 13/16 inches diameter.
• Rating: UL Listed and CSA Certified.
• Disruption Rating: 200kA at 600VAC, 20kA at 300VDC.
