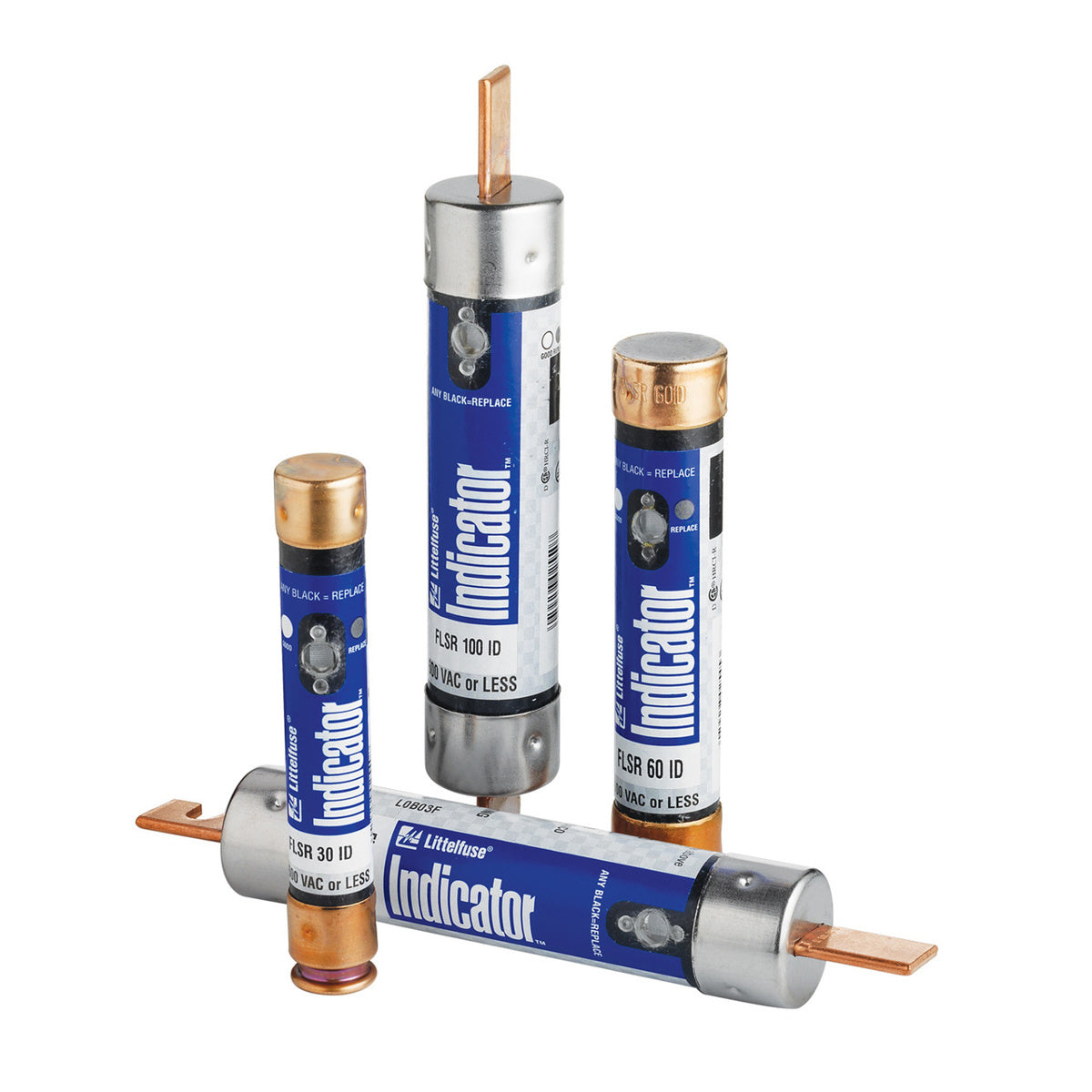

Littelfuse FLSR012ID Current Limiting Time Delay Fuse 12A 600 VAC/300 VDC

Product Description

Littelfuse FLSR012ID is a current limiting time delay fuse. It is designed to provide reliable overcurrent protection for various applications including service entrance switches and motor control circuits. This fuse operates at a voltage rating of six hundred volts alternating current and three hundred volts direct current.

• Current limiting feature reduces the possibility of circuit damage.
• Time delay allows for temporary overloads without blowing the fuse.
• Visual blown fuse indication simplifies maintenance and troubleshooting.

Product Highlights

This fuse enhances safety and performance in electrical systems by minimizing downtime and potential damage.

Product Information

Standard Information

• Manufacturer: Littelfuse
• MPN: FLSR012ID

Technical Specifications

• Amperage Rating: 12 A
• Voltage Rating: 600 VAC / 300 VDC
• Interrupt Rating: 200/20 kA
• Body Type: Cylindrical
• Body Size: 13/16 inches diameter x 5 inches long
• Class: RK5
• Response Time: 10 seconds
• Material: Composite
• Mounting Type: Holder
• Special Features: Time-Delay
• Standards/Approvals: UL 248-12, CSA
