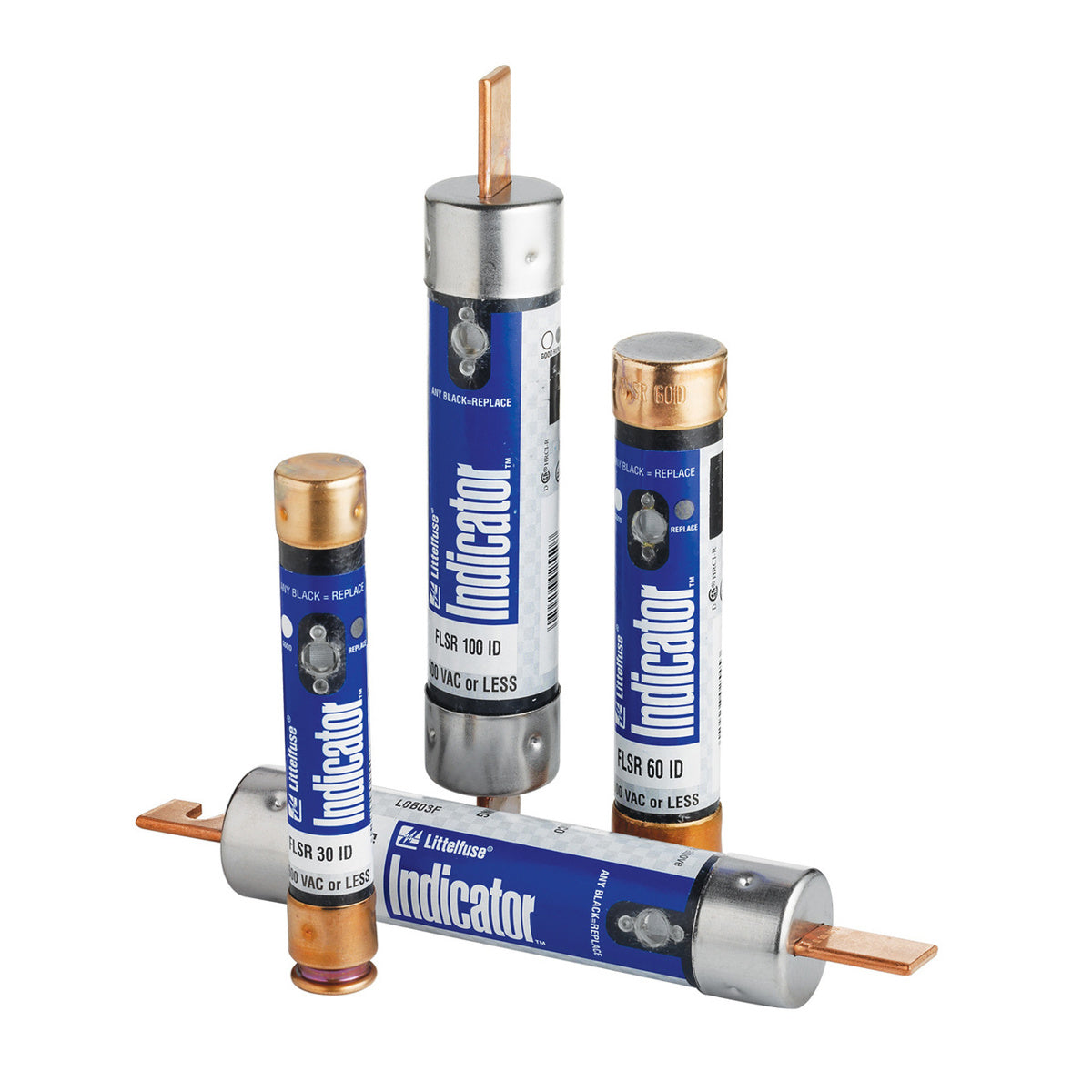

Littelfuse FLSR010 Class RK5 Dual-Element Time-Delay Fuse 10 Amp 600VAC/300VDC

Product Description

The Littelfuse FLSR010 fuse is engineered for reliability and performance, providing effective circuit protection. It is specially designed for applications involving motors, where its time-delay characteristic plays a critical role in managing temporary overloads without prematurely interrupting the circuit.

• Class RK5 with dual-element design ensures precise protection.
• Rated for 10 Amps, 600VAC, and 300VDC with an interrupt rating of 200/20 kA..
• Non-indicating, cylindrical body measures 5 inches long with a diameter of 13/16 inches.

Product Highlights

This fuse offers consistent performance and response to overloads and short-circuits, making it ideal for a wide range of general-purpose applications, from service entrance switches to motor control centers.

Product Information

Standard Information

• UPC: 079458170658
• Manufacturer: Littelfuse
• Item Type: Class RK5
• Application: General Purpose

Technical Specifications

• Amperage Rating: 10A
• Voltage Rating: 600 VAC/300 VDC
• Interrupt Rating: 200 kA at 600 VAC, 20 kA at 300 VDC
• Body Material: Composite
• Mounting Type: Holder
• Response Time: 10s
• Terminal Type: Ferrule
• Standards/Approvals: UL 248-12, CSA LR29862
