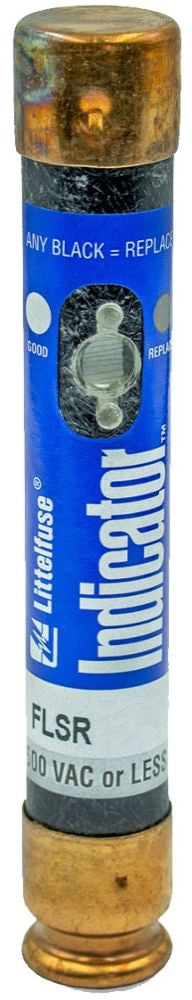

Littelfuse FLSR007ID UL Class RK5 Dual Element Time Delay Fuse with Indication

Product Description

The Littelfuse FLSR007ID is a UL Class RK5 dual element time delay fuse. This fuse features an indicator that provides visual blown fuse indication at a glance. It is built with a solid-state design that enhances reliability and performance. The patented dual-element design saves time and money by reducing downtime and nuisance opening.

• Dual element time delay fuse with visual indication
• Voltage rating of 600 VAC/300 VDC
• Interrupting rating: 200000 Ampere (Symmetrical)

Product Highlights

This fuse is suitable for a variety of applications including service entrance panels, switchboards, motor control circuits, and more. It can improve safety and minimize exposure to live circuits, making it essential for maintaining equipment and personnel safety.

Product Information

Standard Information

• Brand: Littelfuse
• MPN: FLSR007ID

Technical Specifications

• Type: Class RK5
• Voltage: 600 VAC/300 VDC
• Current Rating: 7 Amp
• Interrupting Rating: 200000 Ampere (Symmetrical)
• Response Time: 10 seconds
• Terminal Type: Ferrule
• Body Size: 0.81 inches diameter x 5 inches length
• Approval Standards: UL 248-12, CSA, QPL-WF-1814, CE
