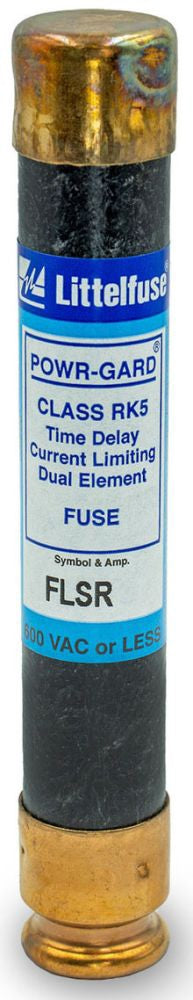

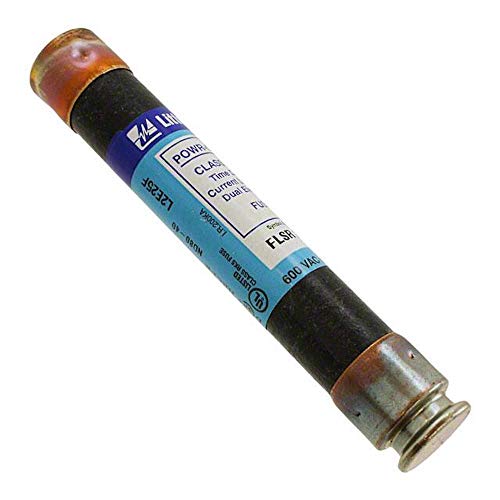

Littelfuse FLSR003 600V RK5 Time Delay Fuse

Product Description

The Littelfuse FLSR003 fuse provides robust protection for electrical circuits, particularly in motors and other high-demand applications. This time-delay fuse operates at 600V with a 3A rating, designed to handle conditions where motors start up and shut off frequently, preventing premature blowing due to transient currents.

• Dual element design increases time delay to cope with inrush currents without tripping.
• Works effectively up to 600V AC and 300V DC, offering versatility across multiple installations.
• Suitable for use in industrial applications including motor control centers and switchboards.

Product Highlights

The Littelfuse FLSR003 is engineered to interrupt both overcurrents and short circuits swiftly, ensuring reliable performance and safety.

Product Information

Standard Information

• Series: FLSR
• Class: RK5
• Amperage Rating: 3A
• Voltage Rating: 600V AC/300V DC
• Interrupt Rating: 200/20 kA
• Response Time: 10s
• Element: Dual
• Mounting Type: Holder

Technical Specifications

• Body Material: Composite
• Body Size: 13/16 in Dia x 5 in L
• non-indicating
