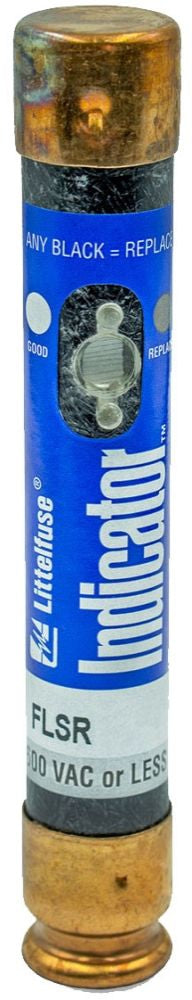

Littelfuse FLSR002ID Current Limiting Time Delay Fuse 2 A 600 VAC/300 VDC 200/20 kA Interrupt RK5 Class

Product Description

The Littelfuse FLSR002ID is a current limiting time delay fuse designed for reliable protection in electrical circuits. This fuse is rated at two amperes and can handle voltages up to six hundred volts AC or three hundred volts DC. It is classified as RK5 and features a cylindrical body made from composite materials.

• Reliable interruption of all over currents up to 200 kA.
• Indicating fuse helps reduce downtime and improves safety.
• Designed for applications including service entrance switches and motor control circuits.

Product Highlights

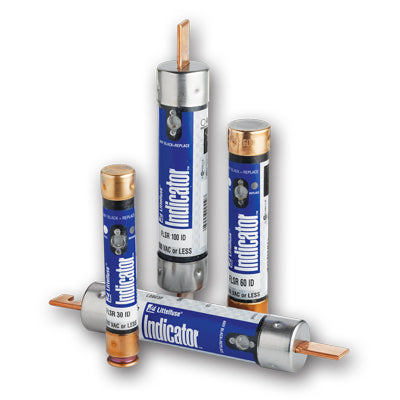

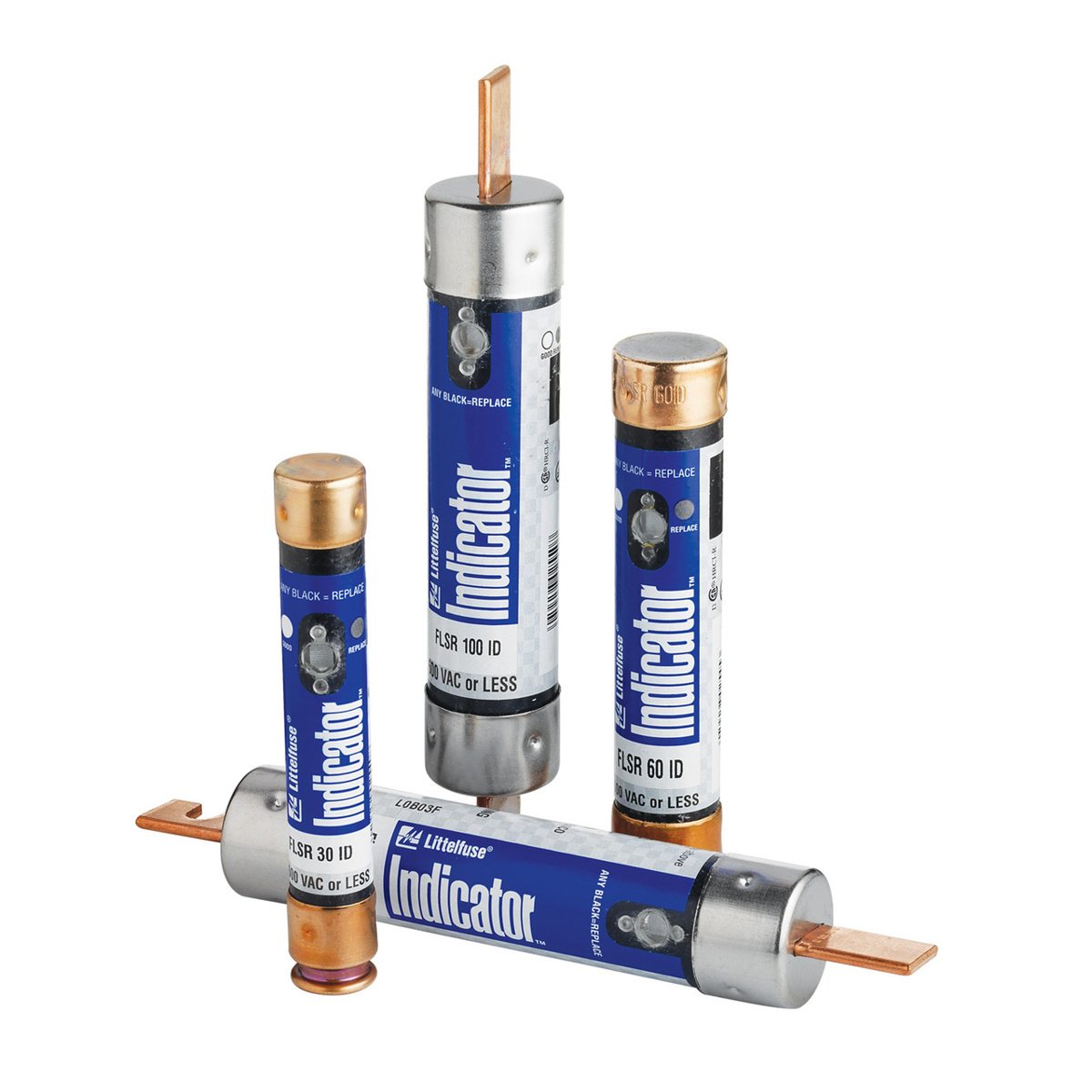

The Littelfuse FLSR series provides excellent circuit protection, making it suitable for various applications where overload and short circuit protection are critical.

Product Information

Standard Information

• Brand: Littelfuse
• MPN: FLSR002ID

Technical Specifications

• Class: RK5
• Current Rating: 2 A
• Voltage Rating: 600 VAC/300 VDC
• Interrupt Rating: 200/20 kA
• Frequency Rating: 50/60 Hz
• Response Time: 10 s
• Body Size: 13/16 in diameter x 5 in length
• Terminal Type: Ferrule
• Body Type: Cylindrical
• Country of Origin: Mexico
