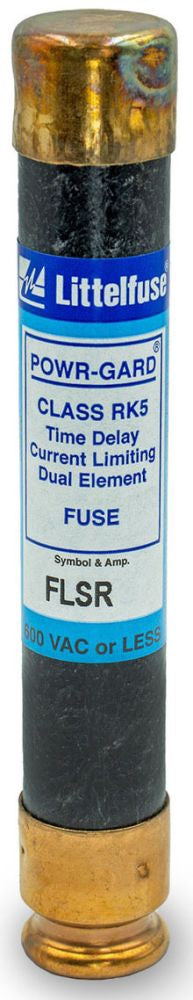

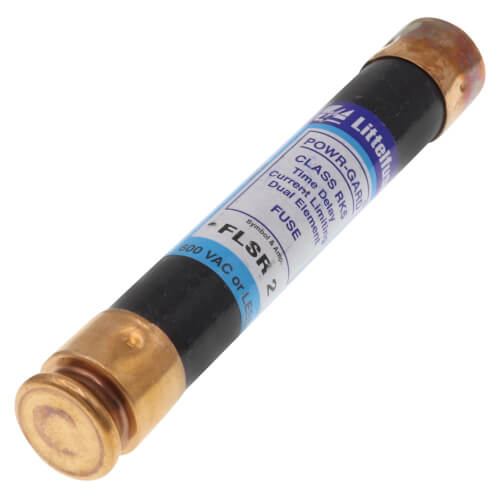

Littelfuse FLSR002 600V RK5 Time Delay Fuse

Product Description

The Littelfuse FLSR002 is a 600V RK5 time-delay fuse designed specifically for industrial use where reliable surge protection is necessary. It features a dual-element design, enhancing both overload and short-circuit protection.

• Rated for 600VAC and 300VDC applications.
• Dual-element structure provides superior protection.
• Non-indicating, cylindrical form for easy installation.

Product Highlights

The fuse offers intelligent response to high surge currents while supporting standard operating currents, ensuring both safety and efficiency in heavy-duty circuit conditions. This model is particularly effective in environments with motors and transformers.

Product Information

Standard Information

• Brand: Littelfuse
• MPN: FLSR002

Technical Specifications

• Amperage Rating: 2A
• Voltage Rating: 600 VAC/300 VDC
• Interrupt Rating: 200 kA at 600 VAC, 20 kA at 300 VDC
• Body Dimensions: 5 in Length x 13/16 in Diameter
• Material: Composite
• Mounting Type: Holder
