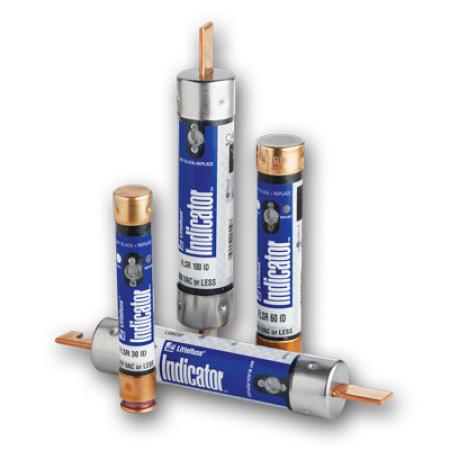

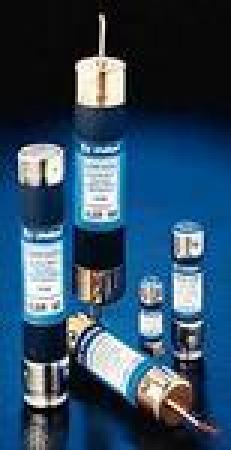

Littelfuse FLSR.200 Littelfuse FLSR200 200 Amp 600 VAC 300 VDC Class RK5 Dual Element Time Delay Fuse

Product Description

The Littelfuse FLSR.200 is a 200 Amp, 600 Volt AC and 300 Volt DC Class RK5 dual-element time-delay fuse. This fuse is designed for superior performance in applications such as service entrance switches, switchboard mains, motor control centers, and industrial control panels. It is reliable for interrupting overcurrents up to 200,000 amperes, making it suitable for various circuits, especially those containing motors.

• Current Limiting capability.
• Fast-acting short circuit protection.
• Automated precision for consistent responses to overloads and short circuits.

Product Highlights

This fuse is recognized for providing excellent protection for motor circuits and general applications. It features a non-indicating design with a rejection style, ensuring compatibility with several types of holders.

Product Information

Standard Information

• Manufacturer: Littelfuse
• Catalog Number: FLSR.200

Technical Specifications

• Voltage Rating: 600 VAC / 300 VDC
• Amperage Rating: 0.2 A
• Body Size: 13/16 inches diameter by 5 inches long
• Class: RK5
• Item Type: Time Delay Fuse
• Interrupt Rating: 200/20 kA
• Frequency Rating: 50/60 Hz
• Material: Composite
• Special Features: Time-Delay
• Body Type: Cylindrical
• Country of Origin: Mexico
• Standard: UL 248-12 / CSA
