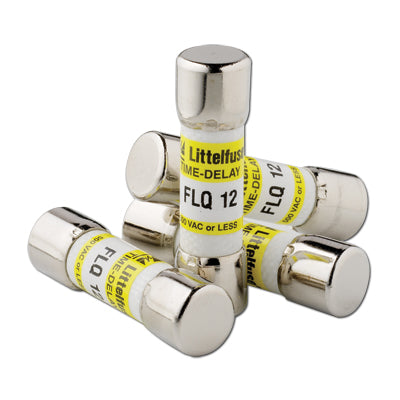

Littelfuse FLQ030 30 Amp 500 VAC 300 VDC Time Delay Midget Fuse

Product Description

The Littelfuse FLQ030 is a robust time-delay midget fuse designed to protect circuits in a variety of applications. This fuse offers a split-second delay to tolerate temporary overload before opening, making it ideal for circuits with high inrush currents.

• Rated for 500 VAC and 300 VDC, handling significant voltage requirements.
• Capable of interrupting 10kA at 500 VAC, proving its reliability in high-demand situations.
• Engineered for both industrial and residential applications.

Product Highlights

This cylindrical midget fuse is made from durable melamine and features nickel-plated copper alloy end caps that enhance conductivity. It's UL listed and meets CSA standards, ensuring its compliance and safety.

Product Information

Standard Information

• Application: Ideal for control transformers, solenoids, and power circuits.
• Size3>: Cylindrical body measuring 1.5 inches in length and 0.406 inches in diameter.

Technical Specifications

• Amperage: 30 Amp
• Voltage: 500 VAC / 300 VDC
• Interrupt Rating: 10 kA at 500 VAC
• Body Material: Melamine
• Series: POWR-GARD FLQ Series
• Mounting: Clip mount
• Response Time: Time-delay
