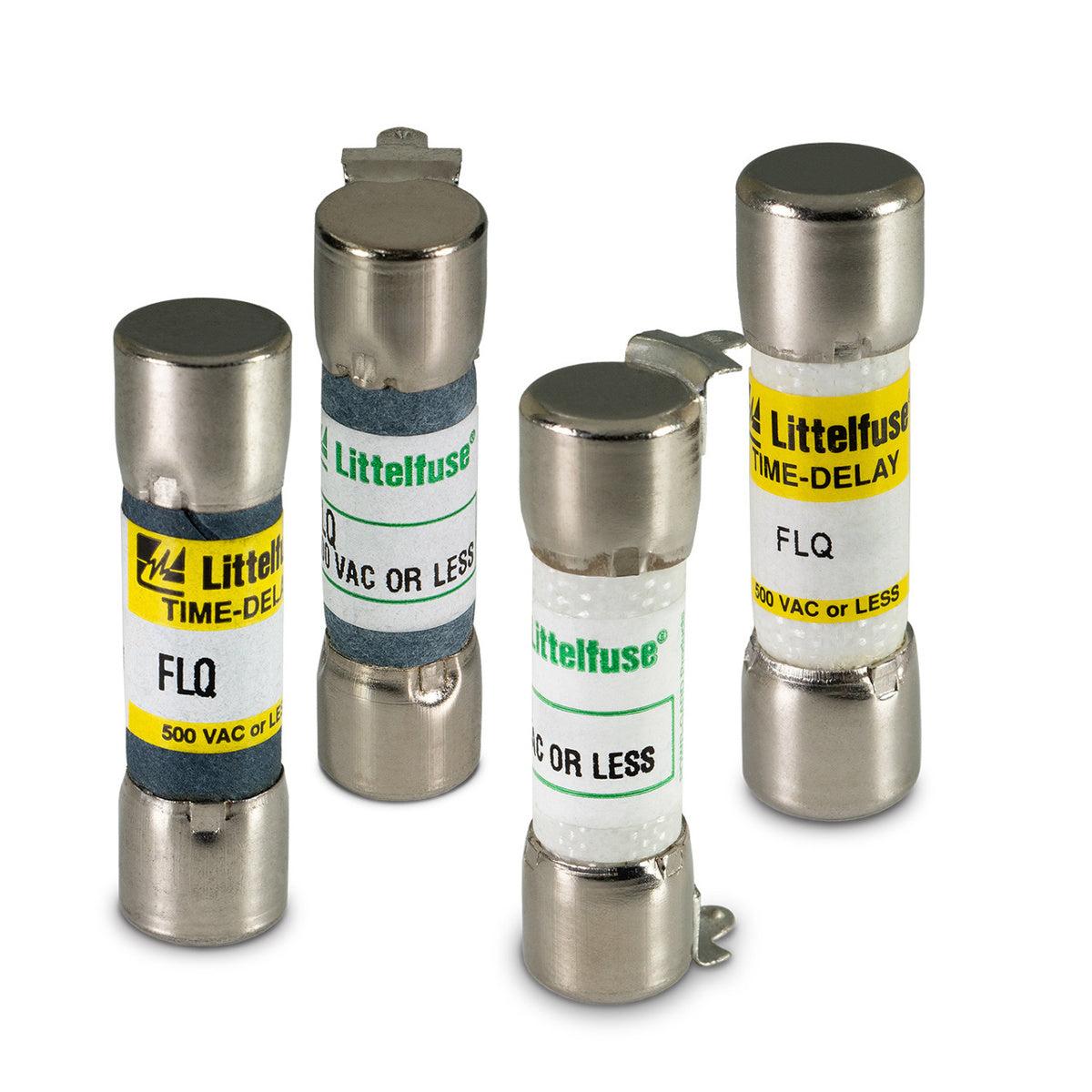

Littelfuse FLQ025 Time Delay Midget Fuse 25 Amp 500 VAC 300 VDC

Product Description

The Littelfuse FLQ025 midget fuse is designed for reliable protection in high inrush current circuits, commonly found in control power transformers and solenoids, rated at 500 VAC and 300 VDC. This fuse offers a time-delay feature that enhances the protection of circuit components by allowing brief overcurrent conditions without tripping.

• Provides robust supplemental protection
• Time-delay feature to cope with high inrush currents
• Suitable for use on circuits up to 480 volts

Product Highlights

Littelfuse FLQ025 is highly effective for safeguarding small motors and transformers against overcurrent, blending swift response with dependable accuracy.

Product Information

Standard Information

• Brand: Littelfuse
• MPN: FLQ025
• Series: POWR-GARD FLQ Series
• UPC: 079458160727
• Type: Time Delay Midget Fuse

Technical Specifications

• Voltage Rating: 500 VAC/300 VDC
• Amperage: 25 Amp
• Interrupt Rating: 10kA at 500 VAC
• Body Material: Melamine
• Dimensions: 13/32 in Dia x 1-1/2 in L
• Standard Compliance: UL Listed, CSA Certified
• Environmental Compliance: RoHS
