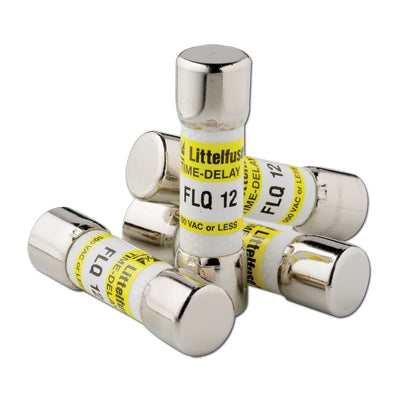

Littelfuse FLQ020 20 Amp 500V Time Delay Midget Fuse

Product Description

The Littelfuse FLQ020 is a 20 Amp, 500V time delay midget fuse designed for reliable performance in a wide range of applications. Ideal for protecting control power transformers, solenoids, and circuits with high inrush currents, these fuses are crafted to provide supplemental protection while preventing immediate fuse blowouts during short-term overload.

• UL and CSA 500 volt ratings allow usage on 480 volt circuits.
• Features a time-delay function to handle temporary spikes without tripping.
• Compatible with small motors for supplemental protection.

Product Highlights

This cylindrical midget fuse is constructed with a melamine body and nickel-plated copper alloy caps, ensuring durability and reliable connection. With a precise 13/32 inch diameter and 1-1/2 inch length, these fuses provide a compact solution for your electrical protections.

Specifications

• Ampere Rating: 20 Amps
• Voltage Capability: 500V AC, 300V DC
• Interrupting Rating: 10kA at 500VAC
• Mounting Type: Clip
• Body Material: Melamine
• Certifications: UL Listed, CSA Certified

Technical Specifications

• Time Delay: Yes
• Indicating/Nonindicating: Nonindicating
• Terminal Type: Ferrule
• Standards/Approvals: RoHS 2011/65/EU Compliant, UL File No. E10480, CSA LR29862
