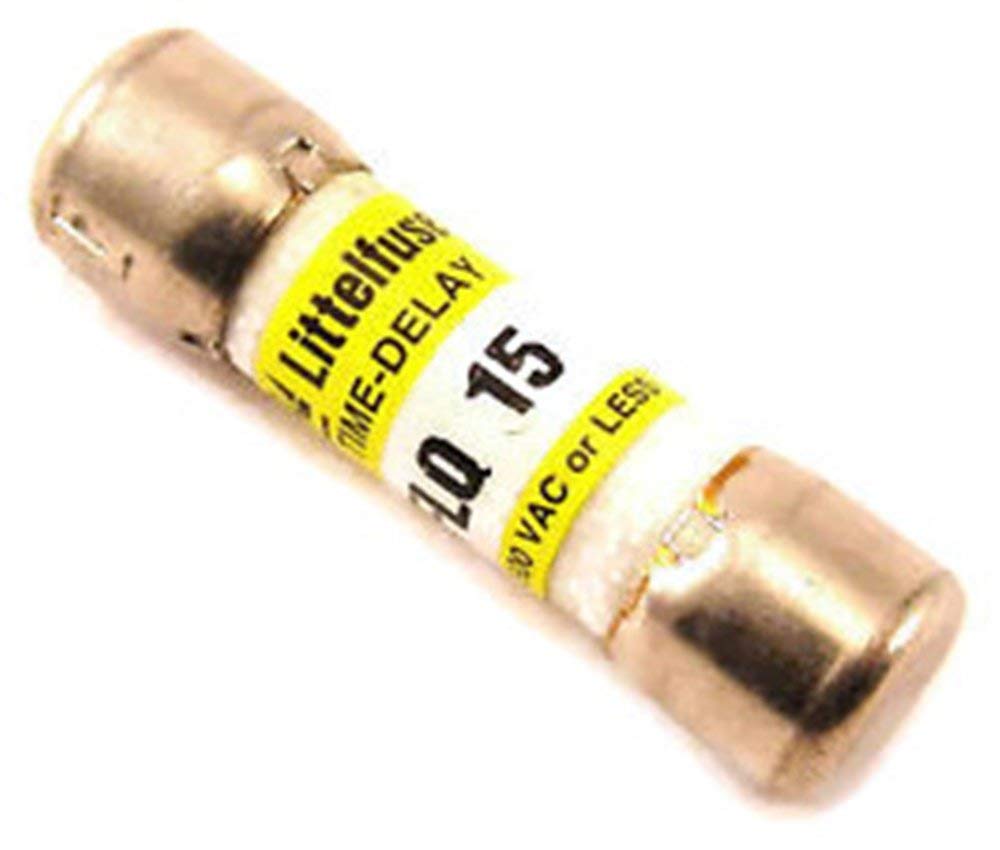

Littelfuse FLQ015 Fuse 500V 15A Time Delay Midget

Product Description

The Littelfuse FLQ015 is a 500V, 15A time delay midget fuse. This Littelfuse FLQ series fuse provides reliable protection for control power transformers, solenoids, and circuits with high inrush currents. The time delay feature allows for temporary overloads, ensuring continuous operation without unnecessary interruptions.

• Voltage: 500V AC/300V DC
• Amperage: 15A
• Interrupt Rating: 10kA

Product Highlights

This fuse is suitable for various applications including small motors, control transformers, and circuits with high inrush currents. It features a non-indicating design and is made of durable melamine material, with a cylindrical body type.

Product Information

Standard Information

• Manufacturer: Littelfuse
• Series: FLQ

Technical Specifications

• Voltage Rating: 500V AC/300V DC
• Amperage Rating: 15A
• Interrupt Rating: 10kA at 500V AC
• Body Material: Melamine
• Body Type: Cylindrical
• Length: 1.5 inches
• Diameter: 13/32 inches
• Mounting Type: Clip
