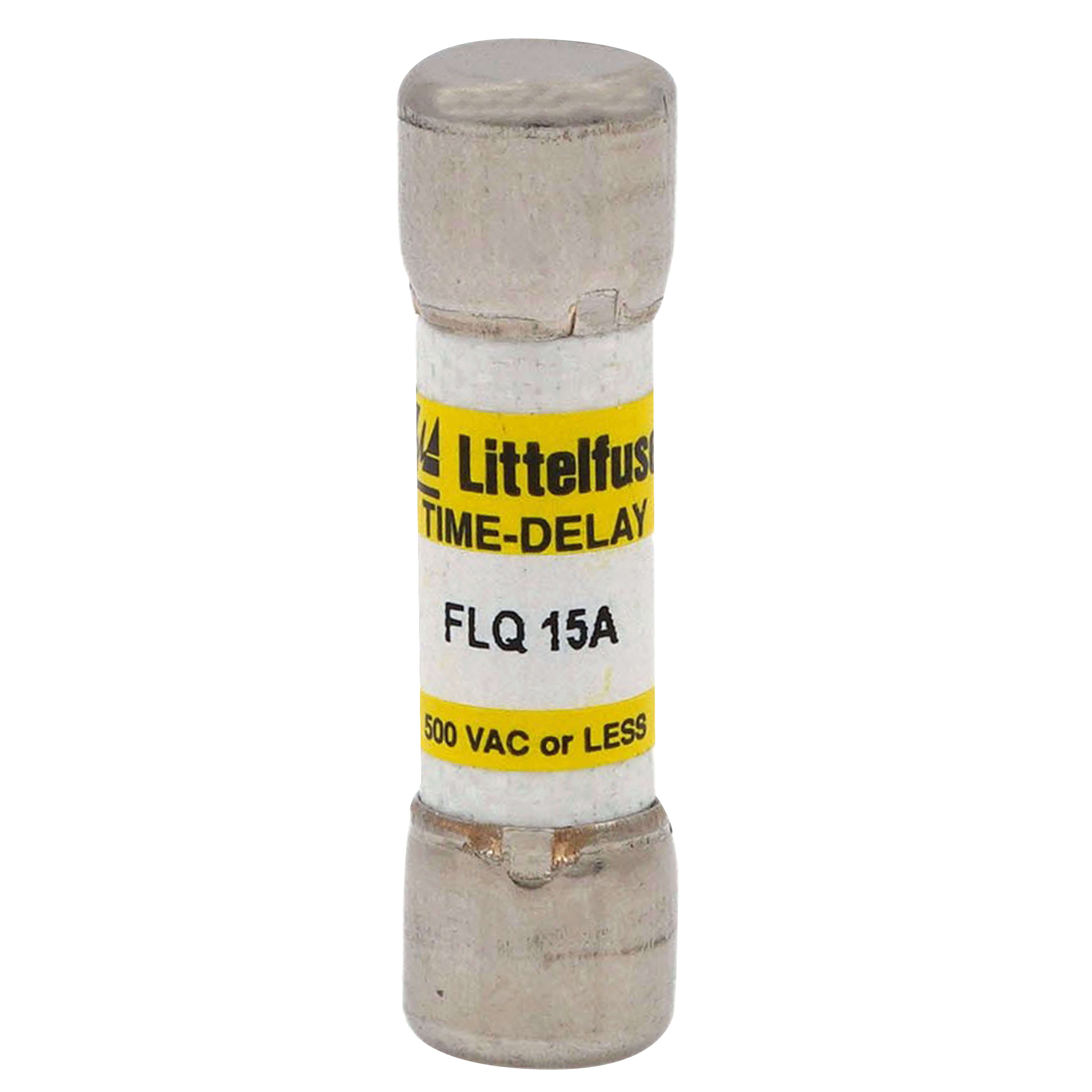

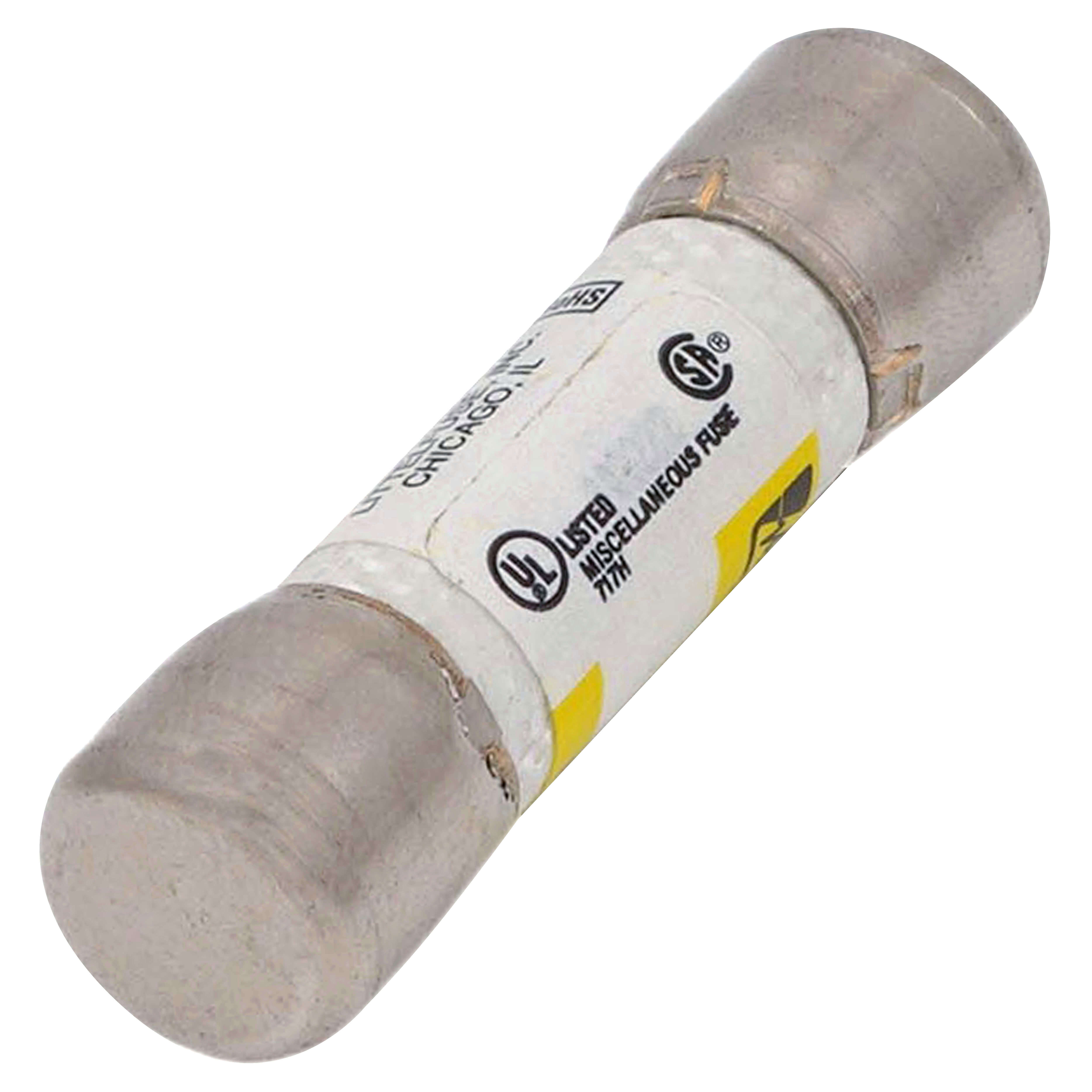

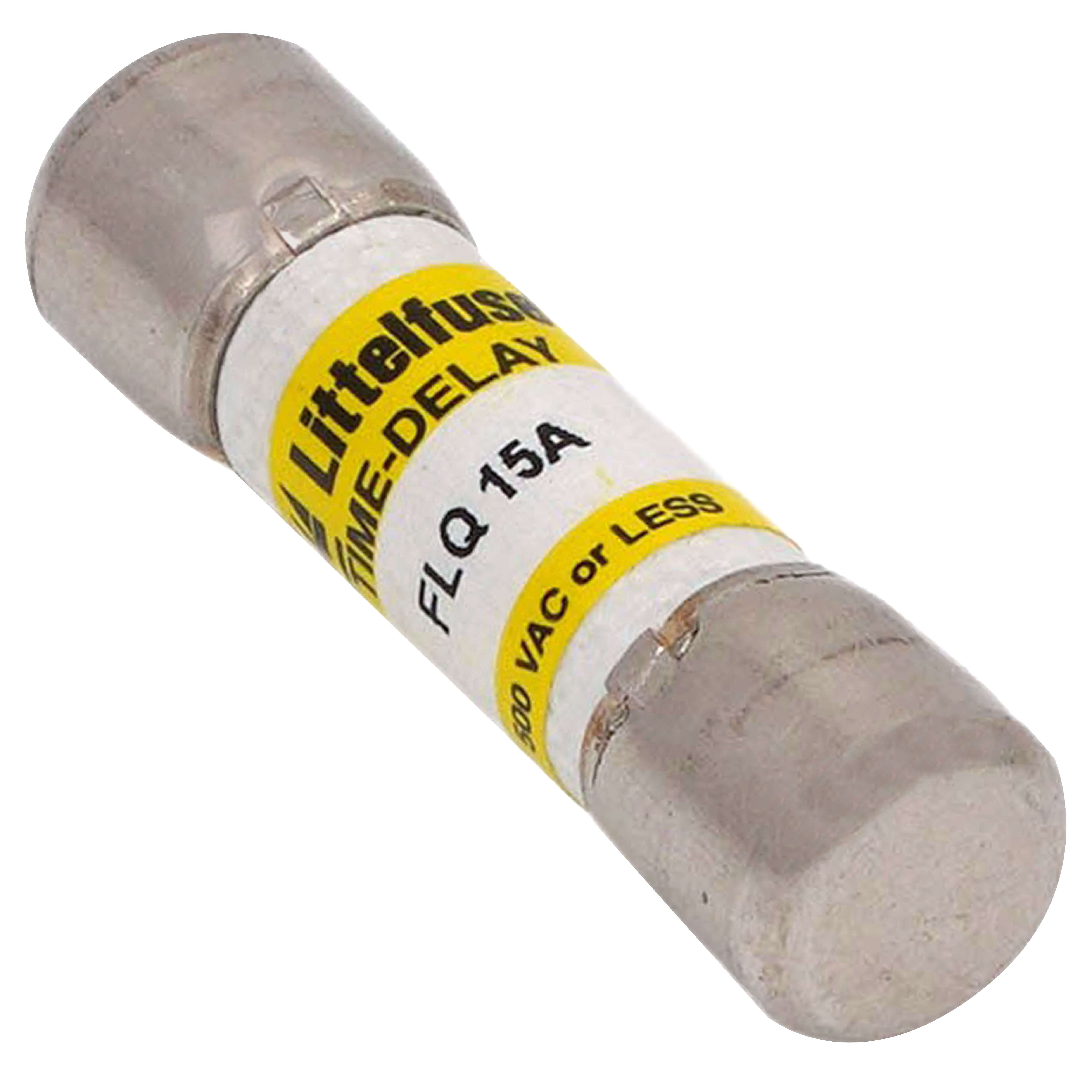

Littelfuse FLQ015 Fuse 15A FLQ Series Time-Delay Midget Fuse, 500 VAC, 300 VDC

Product Description

The Littelfuse FLQ015 midget time-delay fuse provides supplemental protection of control power transformers, solenoids, and circuits with high inrush currents. It is rated for 15 amps and 500 VAC/ 300 VDC. The FLQ015 fuse offers precise and timely interruption of fault currents, minimizing damage to connected components.

• Provides supplemental protection
• Time-delay fuse
• Suitable for control power transformers, solenoids, and circuits with high inrush currents

Product Highlights

The Littelfuse FLQ015 is a time-delay fuse that provides supplemental protection for various applications. It has a voltage rating of 500 VAC/ 300 VDC and an amperage of 15A.

Product Information

Standard Information

• Brand: LITTELFUSE
• Manufacturer Part Number: FLQ015
• Country of Origin: MX

Technical Specifications

• Voltage: 500 Volts
• Amperage: 15 amps
• Fuse Type: Cartridge
• Series: FLQ
• Voltage Rating: 500 VAC, 300 VDC
• Type: Time-Delay
• Class: Time-Delay
• Width: 0.406 Inches
• Length: 1.5 Inches
• Element: Single
• Material: Melamine
• Standard: UL, CSA, RoHS
• Connection: Ferrule End
• Response Time: Time-Delay
• Frequency Rating: 50/60 Hertz
• Country of Origin: MX
• Type Of Indicators: Non-Indicating
• Short Circuit Rating: 10 kAIC
• Ampere Rating (A): 15
• VAC (V): 500
• VDC (V): 300
• Interrupting Rating: 10000A@500VAC
• Opening: Slo-Blo/Time Lag (T)/Time Delay
• Package Size: Midget/5AG
• Current Rating (Continuous) in Amps: 15
• Maximum AC Voltage (V): 500
• Size: Midget/5AG
• Fuse Class: Midget/Class CC
• Indicating: No
• Interrupt Amperage: 10000
• interrupt Amperage (A) - 2: 10000
• Interrupt Voltage Type ACDC - 1: AC
• Interrupt Voltage Type ACDC - 2: DC
• Interrupt Voltage: 500
• interrupt Voltage (V) -2: 300
• Mounting Method: Fuse Block / Clip / Holder
• Amperage Rating: 15 A
• Body Size: 13/32 in Dia x 1-1/2 in L
• Body Style: Cylindrical
• Terminal Type: Ferrule
• Application: For supplementary protection of control circuits, street lighting, computers, DC circuits, solenoids, small motors and transformers
• Standard & Approvals: UL File No. E10480, CSA File No. LR29862, RoHS Compliant
• Catalog ID: L-FFLQ015
• Current Rating: 15 A
• DC Resistance: 0.0069 Ohms
• Diameter: 0.406 in
• Manufacturer Part Number: FLQ015
• Primary Type: Cylinder
• Termination: Cartridge
