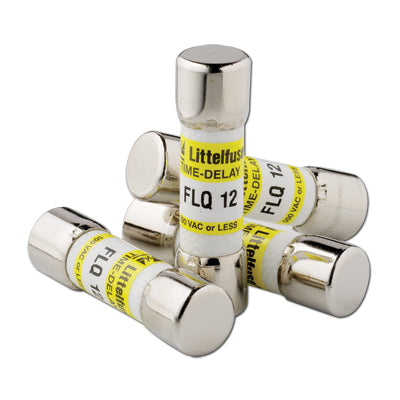

Littelfuse FLQ012 Time Delay Midget Fuse 500VAC 300VDC 12 Amps

Product Description

The Littelfuse FLQ012 Time Delay Midget Fuse offers exceptional protection for high inrush current circuits. Designed to handle 12 Amps at 500 Volts AC, this robust fuse is ideal for control transformers, solenoids, and other electrical components in both industrial and commercial settings.

• Delay feature allows temporary surges without trips, enhancing continuity.
• Rated for 10,000 Amps interrupting current, ensuring reliable protection.
• Compact cylindrical design with melamine body for durability.

Product Highlights

This fuse offers a slow-blow function specifically engineered to provide supplemental protection by safeguarding sensitive circuits against transient currents and overloads. Industry certifications include CSA and RoHS compliance, reflecting its commitment to quality and environmental safety.

Technical Specifications

• Amperage Capacity: 12 Amps
• Voltage: 500 VAC / 300 VDC
• Interrupt Rating: 10kA at 500V AC
• Body Material: Melamine
• Size: 13/32 inch dia x 1 1/2 inch length
• Type: Time Delay Midget Fuse
