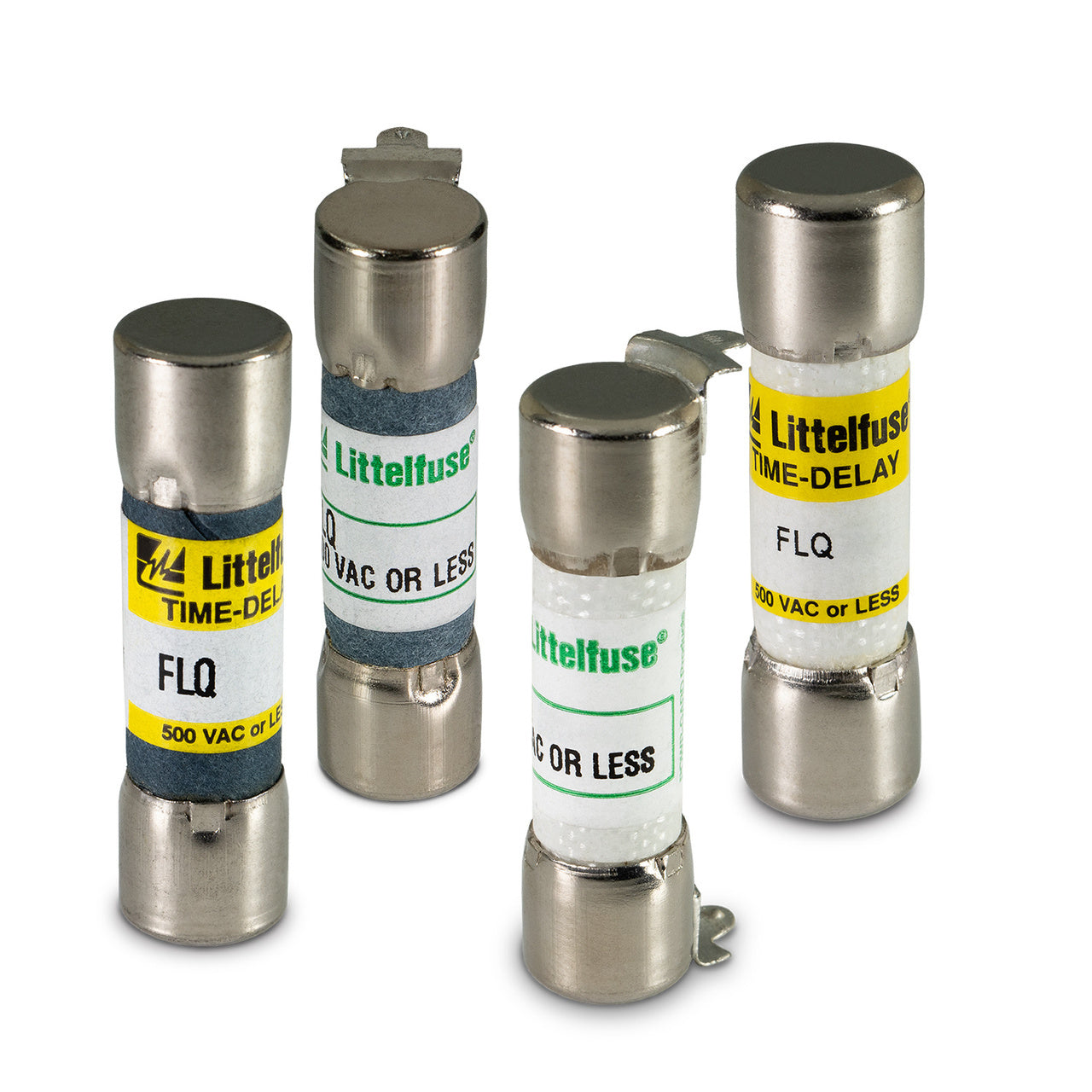

Littelfuse FLQ010 Time Delay Midget Fuse 10 Amp 500 VAC 300 VDC

Product Description

The Littelfuse FLQ010 10 Amp time delay midget fuse offers advanced circuit protection for control power transformers, solenoids, and circuits with high inrush currents. It is utilized widely in various equipment to prevent short circuits and overloads.

• Rated for 500 volts AC and 300 volts DC.
• Designed to interrupt up to 10kA.
• UL in Mexico and CSA certified.

Product Highlights

Known for its reliability, the FLQ Series by Littelfuse provides exceptional protection and is specifically designed to accommodate high inrush currents that can cause other fuses to blow prematurely. Its cylindrical, midget size makes it easy to install in standard fuse holders.

Product Information

Standard Information

• Brand: Littelfuse
• MPN: FLQ010

Technical Specifications

• Type: Time Delay
• Amperage: 10 Amp
• Voltage: 500 VAC/300 VDC
• Interrupt Rating: 10kA at 500VAC
• Size: 13/32 in Dia x 1-1/2 in L
• Material: Melamine
• Compliance: RoHS, CSA Certified, UL Listed
