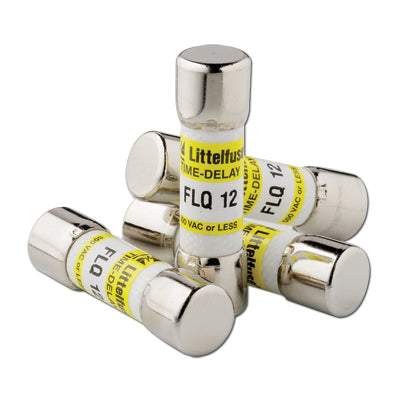

Littelfuse FLQ010 LIT Time Delay Midget Fuse 10 Amp 500 VAC/300 VDC

Product Description

Littelfuse FLQ010 is a time delay midget fuse designed for circuit protection. This fuse is rated at ten amps and can handle voltage up to five hundred VAC and three hundred VDC. It provides supplementary protection for control power transformers and circuits with high inrush currents. With a ten kiloamp interrupt rating, it ensures safety and reliability in electrical systems.

• Time delay feature prevents nuisance blowing.
• Cylindrical body design for easy mounting.
• Suitable for various applications including solenoids and small motors.

Product Highlights

This fuse features a non-indicating design and a twelve second response time, making it ideal for systems where brief overloads are expected. The nickel-plated copper alloy caps add durability to the fuse.

Product Information

Standard Information

• Manufacturer: Littelfuse
• Type: Time Delay

Technical Specifications

• Series: FLQ
• Voltage Rating: 500 VAC / 300 VDC
• Amperage Rating: 10 A
• Interrupt Rating: 10 kA
• Body Size: 13/32 in Dia x 1-1/2 in L
• Body Type: Cylindrical
• Material: Melamine
• Mounting Type: Clip
• Response Time: 12 s
• Terminal Type: Ferrule
• Indicating/Non-Indicating: Non-Indicating
• Country of Origin: MX
