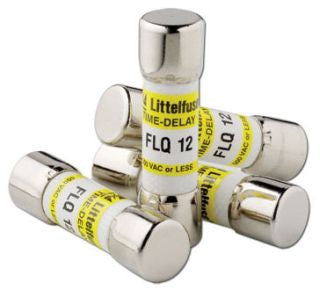

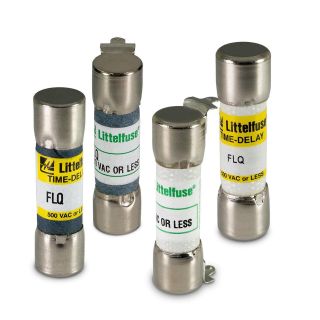

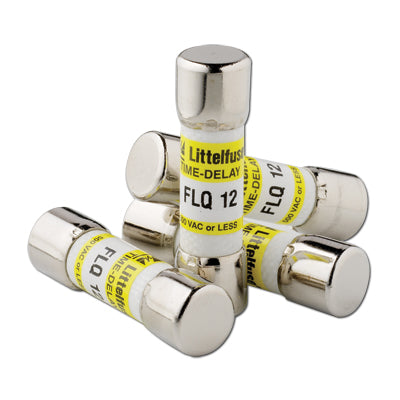

Littelfuse FLQ01.6 LIT Time Delay Fuse 1.6 A 500 VAC/300 VDC 10 kA Interrupt

Product Description

The Littelfuse FLQ01.6 is a time delay supplemental midget fuse designed for circuit protection. It has a rating of 1.6 amps and can handle voltages up to 500 VAC and 300 VDC with a 10 kA interrupting capacity. This cylindrical fuse is ideal for applications requiring reliable protection against high inrush currents.

• Time delay feature for controlled response to overcurrent situations.
• Designed for use in control circuit protection, small motors, street lighting, and solenoid applications.
• Constructed with a melamine body and ferrule terminals for secure mounting.

Product Highlights

This midget fuse provides essential protection for transformers and sensitive circuits where inrush current can cause damage. It adheres to UL and CSA standards for safety and reliability.

Product Information

Standard Information

• Brand: Littelfuse
• MPN: FLQ01.6

Technical Specifications

• Amperage Rating: 1.6 A
• Voltage Rating: 500 VAC/300 VDC
• Interrupt Rating: 10 kA
• Response Time: 5 s
• Body Type: Cylindrical
• Body Size: 13/32 in Dia x 1-1/2 in L
• Terminal Type: Ferrule
• Mounting Type: Clip
• Material: Melamine
• Country of Origin: MX
