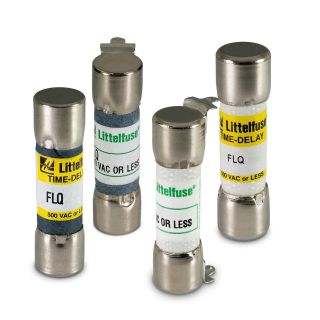

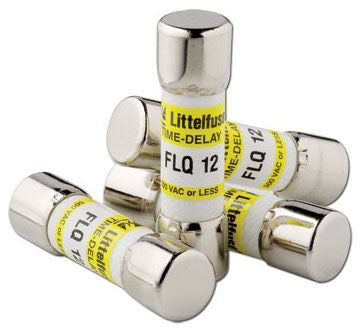

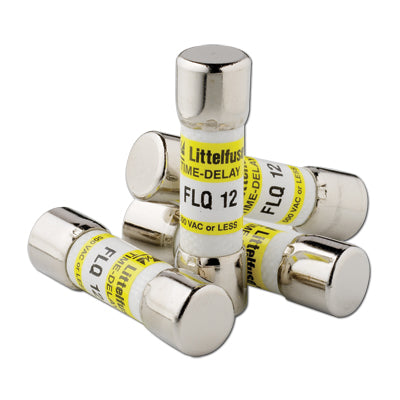

Littelfuse FLQ008 LIT Time Delay Midget Fuse 8 A 500 VAC/300 VDC

Product Description

The Littelfuse FLQ008 is a time delay midget fuse designed for circuit protection. This fuse is rated for eight amperes and operates at voltages up to five hundred AC or three hundred DC. It features a cylindrical body and is constructed from durable melamine.

• Type: Time Delay
• Interrupt Rating: 10 kA
• Application: Control transformers, solenoids, and circuits with high inrush currents

Product Highlights

This fuse is reliable for various applications in electrical systems, including supplementary protection for small motors, control circuits, and street lighting.

Product Information

Standard Information

• Manufacturer: Littelfuse
• UPC: 079458160635

Technical Specifications

• Series: FLQ
• Material: Melamine
• Body Size: 13/32 inches diameter x 1-1/2 inches length
• Body Type: Cylindrical
• Mounting Type: Clip
• Response Time: 12 seconds
• Terminal Type: Ferrule
• Voltage Rating: 500 VAC/300 VDC
• Amperage Rating: 8 A
• Interrupt Rating: 10 kA
• Indicating/Non-Indicating: Non-Indicating
• Country of Origin: Mexico
