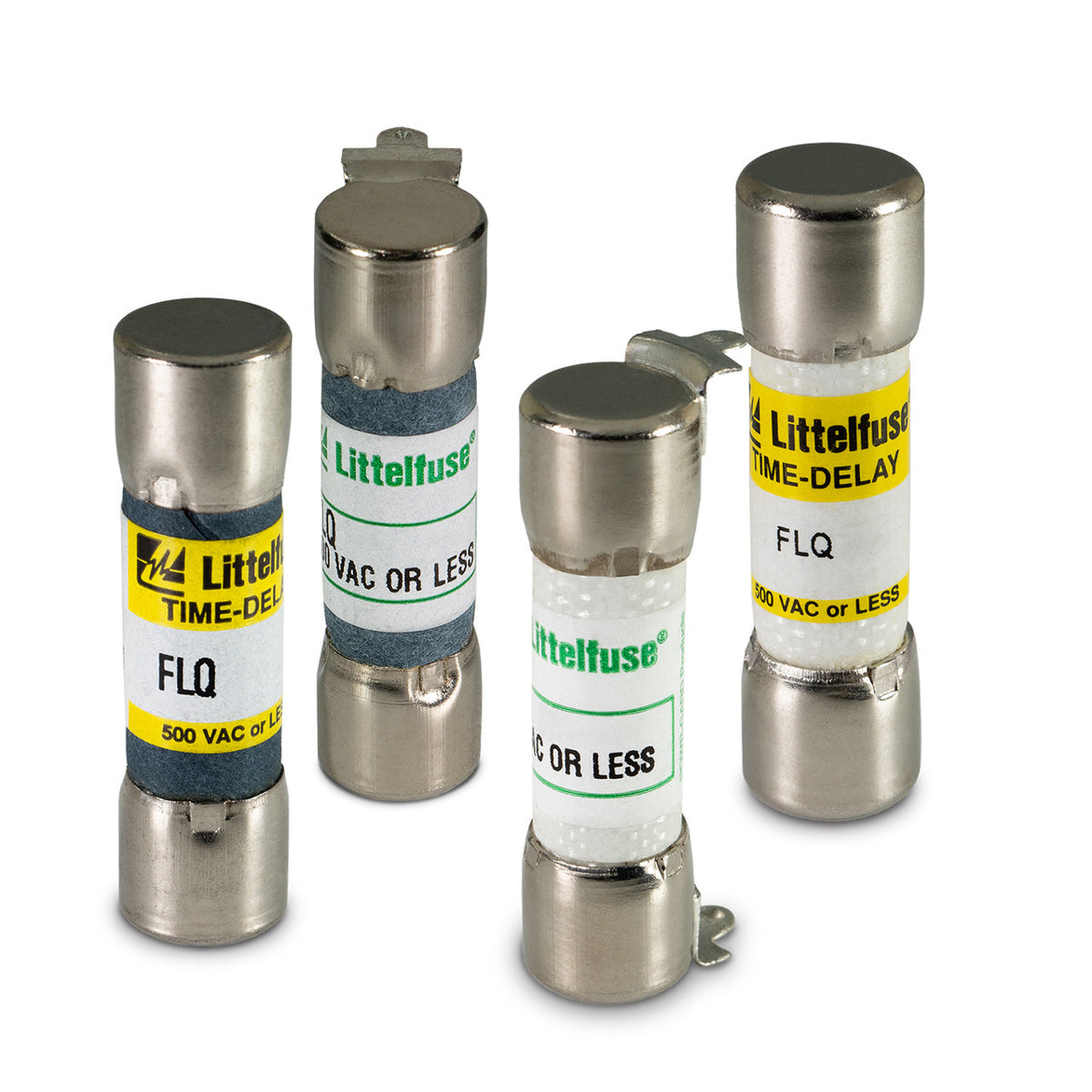

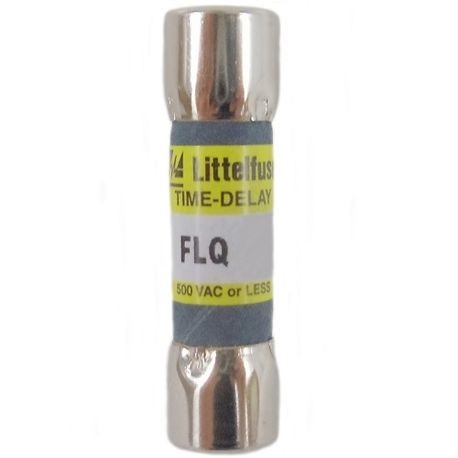

Littelfuse FLQ002 Time Delay Fuse 2 Amp 500 VAC 300 VDC Powr-Gard FLQ Series

Product Description

The Littelfuse FLQ002 is a 2 Amp, 500 VAC/300 VDC time delay midget fuse designed for supplemental protection in electrical systems. It seamlessly manages high inrush currents in control transformers, solenoid circuits, and small motors.

• Designed for enhanced protection in 480 VAC circuits under UL and CSA standards.
• Time delay functionality allows for safe operation during temporary power surges.
• Compact cylindrical design with a 13/32 inch diameter and 1 1/2 inch length.

Product Highlights

This fuse features a robust melamine body and nickel-plated copper alloy caps, ideal for harsh industrial environments. It provides reliable protection with a 10 kA interrupting rating and complies with RoHS, CSA, and UL certifications.

Product Information

Standard Information

• Type: UL Supplemental, Time Delay
• Brand: Littelfuse

Technical Specifications

• Voltage Rating: 500 VAC, 300 VDC
• Amperage: 2 Amp
• Interrupting Rating: 10 kA at 500 VAC
• Body Size: 13/32 in Dia x 1-1/2 in L
• Terminal Type: Ferrule
• Mounting Type: Clip
• Series: FLQ
• Material: Melamine
